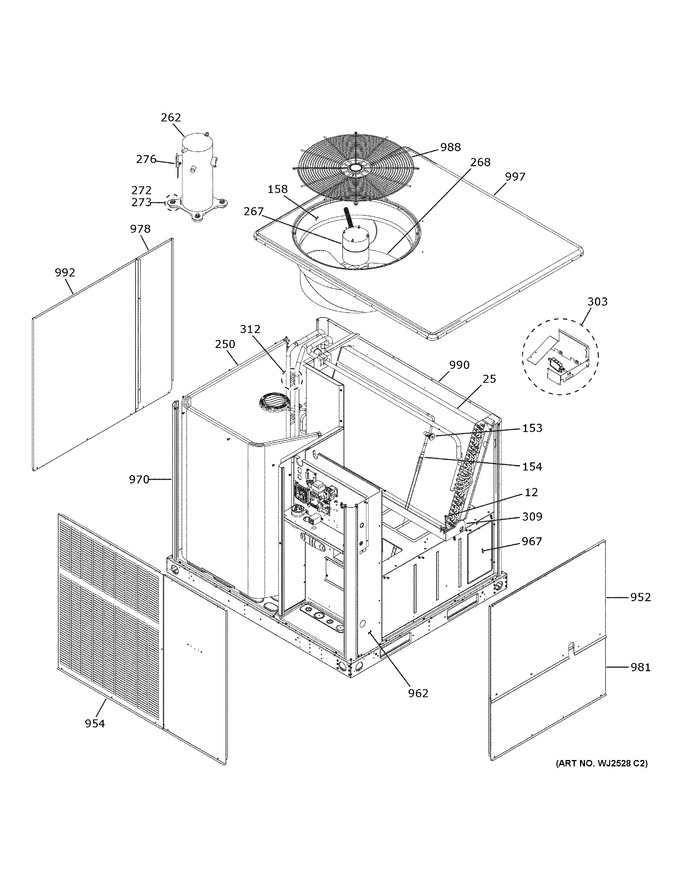

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | R104326-02 | Switch-interlock Level Sensor Nc |
|
- | |||||
| 25 | 12J51 | 613139-02a Evap-coil 3/8 24x40.5 3r15fpi |
|
- | |||||
| 153 | 108078-03 | Valve-expansion Nxt (indoor 4 Ton) |
|
- | |||||
| 154 | 12J25 | 101322-14 Assy-distributor 4 Tube-(cto) |
|
- | |||||
| 158 | 12J46 | Orifice Ring 24.596 I.d. X 6-(cto) |
|
- | |||||
| 250 | 12J97 | 613203-02 Assy-coil Cond 2 Row-(cto) |
|
- | |||||
| 262 | 28C81 | 107744-10 Comp Yas40k1e-pfv R454b 230v-1 |
|
- | |||||
| 267 | 105026-04 | Motor-fan 1/2hp 208/230v 60hz 1ph |
|
- | |||||
| 268 | 15J32 | 100017-12 Fan 24" 3-blade 32-pitch Ccw-( |
|
- | |||||
| 272 | R100303-01 | Grommet-compressor-(cto) |
|
- | |||||
| 273 | R100301-01 | Bolt-sleeve Combination-(cto) |
|
- | |||||
| 276 | 49M73 | Harness (molded Plug)-(cto) |
|
- | |||||
| 303 | 27V53 | 627693-01 Coil Sensor Repair Kit (cto) |
|
- | |||||
| 309 | 21V30 | Pan-drain Plst Insul Lg-(cto) |
|
- | |||||
| 312 | 22H22 | 100503-19 Therm Spst Opn@40f Cls@30f-(ct |
|
- | |||||
| 952 | R622285-01E | Pnl Blower Access Lg-(cto) |
|
- | |||||
| 954 | R621891-01E | Pnl-louver Front Large-(cto) |
|
- | |||||
| 962 | R621893-01E | Pnl-utility Hp-ac Lg-(cto) |
|
- | |||||
| 967 | 621895-02E | Cover Duct - Horizontal (cto) |
|
- | |||||
| 970 | R621894-02E | Post-corner Large-(cto) |
|
- | |||||
| 978 | R621888-01E | Pnl -compressor Access Lg-(cto) |
|
- | |||||
| 981 | R621892-01E | Panel -heat Exchanger Access-(cto) |
|
- | |||||
| 988 | 22H24 | Guard-fan Wire Blk-(cto) |
|
- | |||||
| 990 | R622635-02 | Pnl Rear Lg 3dr Arm Txt Gray-(cto) |
|
- | |||||
| 992 | R621890-01E | Pnl -louver Left Side Lg-(cto) |
|
- | |||||
| 997 | R611802-02E | Pnl Top Lg Arm Txt Gray-(cto) |
|
- |
