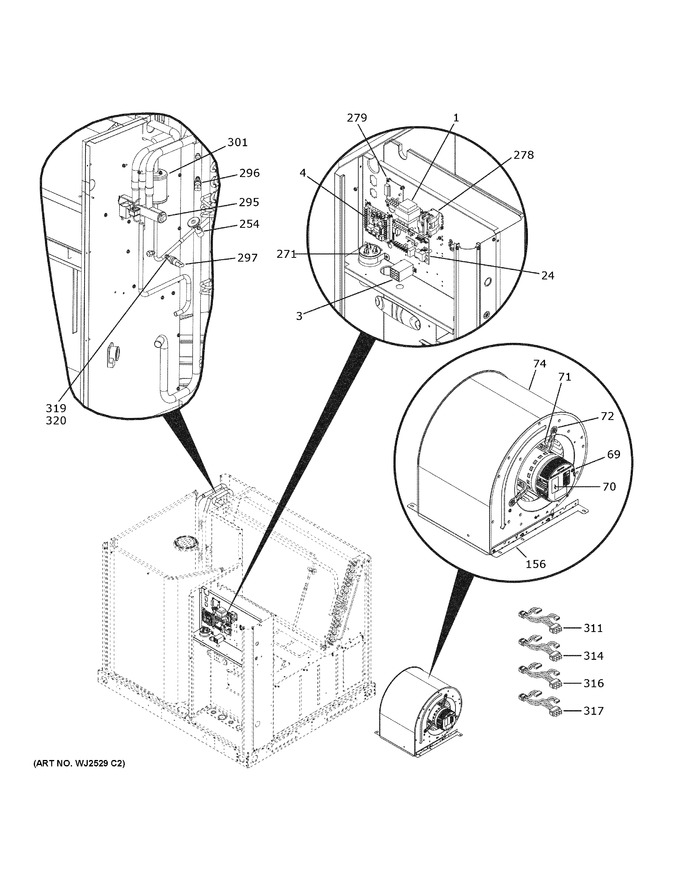

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 47K20 | R39370b001 Transformer |
|
- | |||||
| 3 | 49K04 | 49k0401 Relay |
|
- | |||||
| 4 | 10W57 | R45632-001 Board-circuit |
|
- | |||||
| 24 | 108271-01 | Assy-p.c.board Refrigerent Controller-al |
|
- | |||||
| 69 | 10B66 | Mtr-blr 5.0(mod Sold Separate)-(cto) |
|
Immediately | $ 704.99 | ||||
| 70 | 15T46 | 610587-45 Eon Module 4t Hp/ac 16 Seer |
|
- | |||||
| 71 | 104610-04 | Band Motor Mtg - 4 Arm-(cto) |
|
- | |||||
| 72 | 12X33 | Mount-mtr Arm Bracket-(cto) |
|
- | |||||
| 74 | 12L17 | Blwr Housing & Wheel 10 X 10-(cto) |
|
- | |||||
| 156 | 12B76 | Rail Blower-(cto) |
|
- | |||||
| 254 | 108078-08 | Valve-expansion Nxt (outdoor 4/5 Ton) |
|
- | |||||
| 271 | 63W61 | Dual Run Cap 40+10 @ 440v Rnd |
|
- | |||||
| 278 | 28G86 | 107638-04 Contactor Spst 24v 35a |
|
- | |||||
| 279 | 27U80 | Defrost Control Kit (board)107332-02 |
|
- | |||||
| 295 | 25F78 | Valve-reversing R454b Reversing Valve |
|
- | |||||
| 296 | 12L20 | 100087-14 Switch-hi Press |
|
- | |||||
| 297 | 12L21 | 100087-15 Switch-lo Press |
|
- | |||||
| 301 | 49W23 | Drier - Biflow (r410a)cto |
|
- | |||||
| 311 | 108401-03 | Assy-harness Float Switch |
|
- | |||||
| 314 | 108080-01 | Harness-wiring 16 Seer Hp (cto) |
|
- | |||||
| 316 | 24X73 | Sensor Defrost (harness) |
|
- | |||||
| 317 | 108065-03 | Assy-harness Tstat |
|
- | |||||
| 319 | 95M48 | Valve Core |
|
- | |||||
| 320 | 95M47 | Fitting - Pressuretap-(cto) |
|
- |
