SELECT A DIAGRAM
Cabinet (1)
Cabinet (2)
New Model Search:

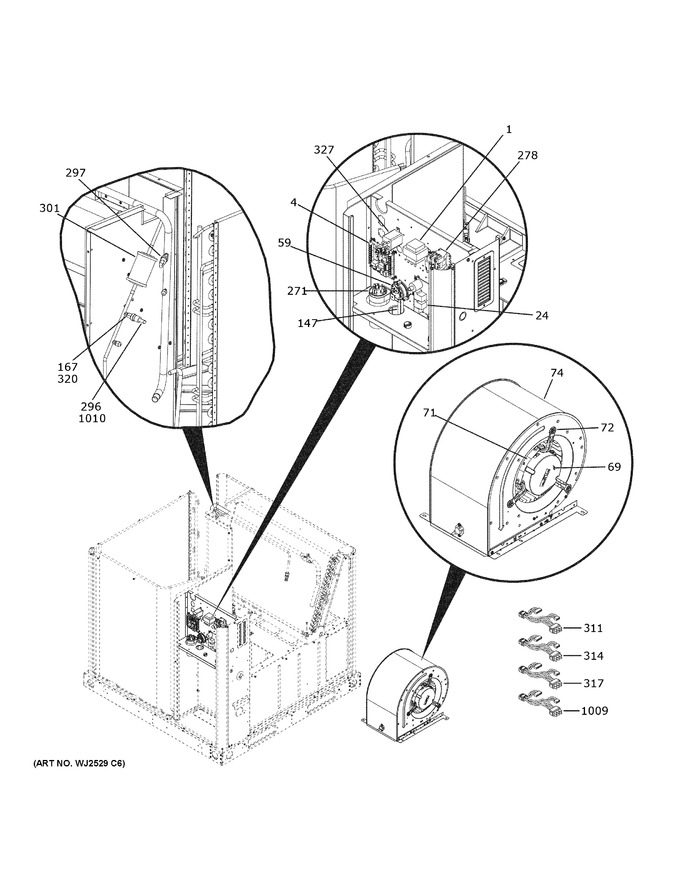

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 47K20 | R39370b001 Transformer |
|
- | |||||
| 4 | 108271-01 | Assy-p.c.board Refrigerent Controller-al |
|
- | |||||
| 24 | 12J99 | 104278-01 Control-ignition |
|
Immediately | $ 605.99 | ||||
| 59 | 22U24 | 105078-04 Switch-press Single Stage Uln |
|
- | |||||
| 69 | 621175-75 | Mtr Blwr Prog 1/3hp 230v Ecm |
|
- | |||||
| 71 | 32866 | P-8-9501 Band-motor-(cto) |
|
- | |||||
| 72 | 12X33 | Mount-mtr Arm Bracket-(cto) |
|
- | |||||
| 74 | 22U29 | Blower Housing & Wheel 10 X 6-(cto) |
|
- | |||||
| 147 | 22U21 | Lead Electrode 21"-(cto) |
|
- | |||||
| 167 | 95M48 | Valve Core |
|
- | |||||
| 271 | 89M77 | Capacitor 40+5 @ 440v Round |
|
- | |||||
| 278 | 28G86 | 107638-04 Contactor Spst 24v 35a |
|
- | |||||
| 296 | 12L20 | 100087-14 Switch-hi Press |
|
- | |||||
| 297 | 12L21 | 100087-15 Switch-lo Press |
|
- | |||||
| 301 | 18Y32 | Drier Suction Line Filter-(cto) |
|
- | |||||
| 311 | 108084-02 | Harness-wiring Ulnox G/e (cto) |
|
- | |||||
| 314 | 22U27 | Harness-wiring Limit-(cto) |
|
- | |||||
| 317 | 13K20 | Harness-wiring Od Fan-(cto) |
|
- | |||||
| 320 | 95M47 | Fitting - Pressuretap-(cto) |
|
- | |||||
| 327 | 25J38 | Relay Fan Spdt-(cto) |
|
- | |||||
| 1009 | 22U28 | Harness-wiring Secondary Limit-(cto) |
|
- | |||||
| 1010 | 1851A017 | Switch-limit Nc 150f Green/white |
|
- |
