SELECT A DIAGRAM

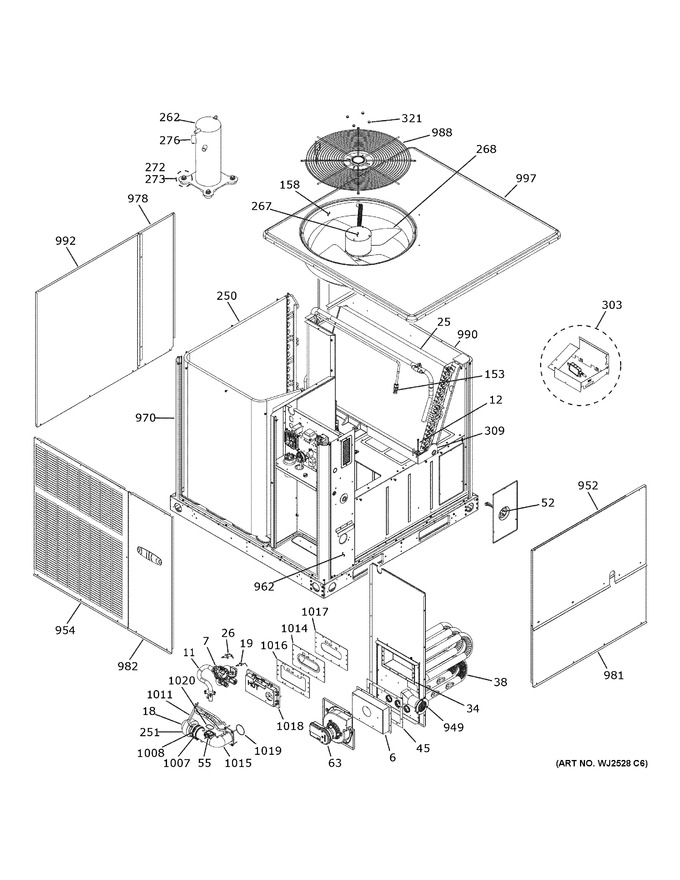

Cabinet (1)
Cabinet (2)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | R616079-10 | Box-flue Collector-(cto) |
|
- | |||||
| 7 | 15D34 | 103016-03 Valve-gas (modulating) |
|
- | |||||
| 11 | 22U25 | Assy-manifold Nozzle Uln-(cto) |
|
- | |||||
| 12 | R104326-02 | Switch-interlock Level Sensor Nc |
|
- | |||||
| 18 | 20V99 | 617362-01 Assembly - Screen Intake (cto) |
|
- | |||||
| 19 | 15K16 | Flame Sensor - Uln-(cto) |
|
- | |||||
| 25 | 12J28 | Assy-coil 3/8" 2 Row Evap -(cto) |
|
- | |||||
| 26 | 20C76 | 106379-01 Ignitor |
|
- | |||||
| 34 | 21A46 | Assy-heat Shield-(cto) |
|
- | |||||
| 38 | 628163-03 | Heat Exch Assy Ulnox (cto) |
|
- | |||||
| 45 | 15V90 | Gkt-collector Box, 060(cto) |
|
- | |||||
| 52 | 22B75 | 102857-28 Limit Control (stilt) 200f |
|
- | |||||
| 55 | 66J78 | Rollout Limit-(cto) |
|
- | |||||
| 63 | 22J95 | 615543-06 Cai Replacement (105035-04) |
|
- | |||||
| 153 | 100579-118 | Distr 4 Tube Pstn Sz52 (indoor) (cto) |
|
- | |||||
| 158 | 12J47 | Orifice Ring 22 I.d. X 6 -(cto) |
|
- | |||||
| 250 | 991099931 | Assy-coil 1 Row Cond-(cto) (Replaces: 12J52) |
|
$ 0.02 | |||||
| 251 | 20K67 | Box-flue Collector-(cto) |
|
- | |||||
| 262 | 28V39 | 108046-03 Compressor Rotary 50l5129 |
|
- | |||||
| 267 | 92W51 | 100483-33 Cond Fan Mtr 1/6hp 208-230-1 |
|
- | |||||
| 268 | 10W78 | Fan Assy 4 Bld 24 Pitch Ccw-(cto) |
|
- | |||||
| 272 | R100303-01 | Grommet-compressor-(cto) |
|
- | |||||
| 273 | R100301-04 | Bolt & Sleeve Combination-(cto) |
|
- | |||||
| 276 | 18X95 | Harness-compressor Molded Plug-(cto) |
|
- | |||||
| 303 | 27V53 | 627693-01 Coil Sensor Repair Kit (cto) |
|
- | |||||
| 309 | 22C74 | Pan-drain Plastic Insul Sm-(cto) |
|
- | |||||
| 321 | 85M56 | Nut - Acorn (8-32)-(cto) |
|
- | |||||
| 949 | 12B75 | Vent Hood-(cto) |
|
- | |||||
| 952 | R622285-02E | Panel-blower Access Sm-(cto) |
|
- | |||||
| 954 | R621996-01E | Panel-louver Front Small-(cto) |
|
- | |||||
| 962 | 627727-03E | Panel-utility G/e Sm Arm (cto) |
|
- | |||||
| 970 | R621894-01E | Post-corner Small-(cto) |
|
- | |||||
| 978 | R621888-02E | Panel -compressor Access Sm-(cto) |
|
- | |||||
| 981 | R621892-01E | Panel -heat Exchanger Access-(cto) |
|
- | |||||
| 982 | 27U46 | Cntrl Panel Ac/hp (cto) |
|
- | |||||
| 988 | 12J45 | Guard-fan Wire Blk Dia 27.134-(cto) |
|
- | |||||
| 990 | R622635-03 | Panel -rear Sm 3dr Arm Txt Gray-(cto) |
|
- | |||||
| 992 | R621890-02E | Panel-louver Left Side Small |
|
- | |||||
| 997 | R611267-02E | Panel Top Sm Armstrong Txt Gray-(cto) |
|
- | |||||
| 1007 | 14K09 | Flue Coupling Service Kit-(cto) |
|
$ 61.99 | |||||
| 1008 | 22J96 | Orifice - Air-(cto) |
|
- | |||||
| 1011 | 22P51 | Assy Vacuum Hose - Uln Small Base-(cto) |
|
- | |||||
| 1014 | 20U89 | Plate-burner Premix Uln-(cto) |
|
- | |||||
| 1015 | 15P55 | Elbow - Gas/air-(cto) |
|
- | |||||
| 1016 | 20U86 | Gasket-plenum (low Ht) Back-(cto) |
|
- | |||||
| 1017 | 20U83 | Gasket-burner Box (low Ht)-(cto) |
|
- | |||||
| 1018 | 20B69 | Gasket-sensor/igniter-(cto) |
|
- | |||||
| 1019 | 15K20 | O-ring, Elbow/plenum-(cto) |
|
- | |||||
| 1020 | 15V45 | O-ring,manifold/elbow-(cto) |
|
- |
