Burner Box Parts
Cooktop And Burner Parts
Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

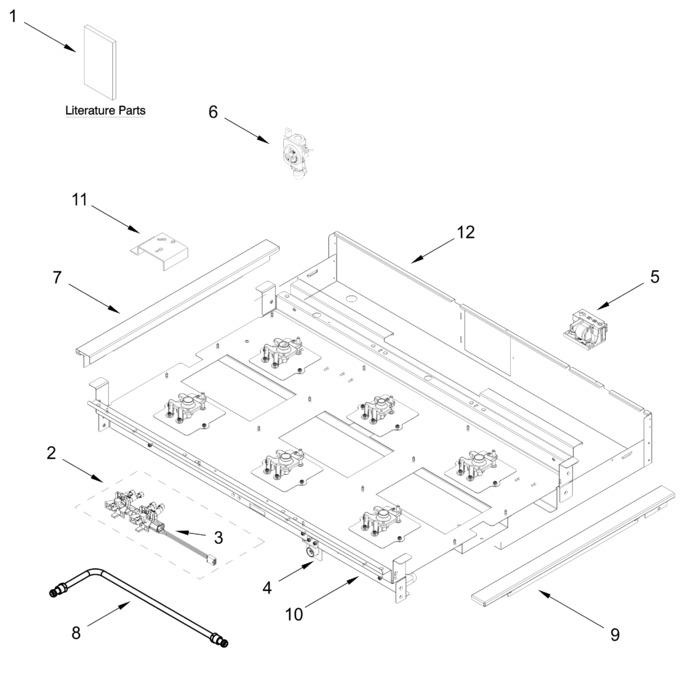

| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11785249 | Valve Manifold Assembly (Replaces: W11651407) |
|
- | |||||
| 3 | W11785261 | Switch, Harness (Replaces: W11596344) |
|
- | |||||
| 4 | W11121199 | Bracket, Manifold |
|
- | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 81.60 | ||||
| 6 | W11106948 | Regulator, Pressure (Replaces: W10449140) |
|
Immediately | $ 238.90 | ||||
| 7 | W11339740 | Trim, Main (left) (Replaces: W11047750) |
|
Immediately | $ 177.07 | ||||
| 8 | W11339379 | Tube, Manifold Supply (Replaces: W10892347) |
|
$ 179.47 | |||||
| 9 | W11339741 | Trim, Main (right) (Replaces: W11047752) |
|
Immediately | $ 177.07 | ||||
| 10 | ARI67489F6E1A2CB69AB1596C613567F5E0 | Burner Box Assembly (not Serviced) |
|
- | |||||
| 11 | 8285790 | Bracket, Mounting Orifice |
|
$ 85.85 | |||||
| 12 | ARIDBAA9548A1EB15B27ADE369B6B57A1AD | Box, Burner (not Serviced) |
|
- | |||||
| ARI37B8E4B893E16B12753EF451007A9D17 | (center Front And Center Rear) |
|
- | ||||||
| W11785256 | Valve Manifold Assembly (Replaces: W11651406) |
|
- | ||||||
| W10624584 | Cord, Power |
|
$ 189.57 | ||||||
| ARI55C06F183F5209A80F64451115E0C931 | (left) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11502161 | Kit, Lp Conversion (Replaces: W11238042) |
|
Immediately | $ 79.21 | |||||
| W11785258 | Valve Manifold Assembly (Replaces: W11651402) |
|
$ 274.96 | ||||||
| W11565472 | Wiring Diagram |
|
- | ||||||
| W11508891 | Installation Instructions |
|
- | ||||||
| W11508900 | Owners Manual |
|
- | ||||||
| W11213527 | Harness, Cooktop |
|
$ 195.94 | ||||||
| ARIF4444C9CC15AF901E399B849F8A4059C | (right Front And Right Rear) |
|
- | ||||||
| W11202295 | Sheet, Tech |
|
- | ||||||
| W11038934 | Harness, Jumper |
|
$ 186.90 | ||||||
| W11339377 | Tube, Manifold Supply (Replaces: W10892445) |
|
- | ||||||
| W11337056 | Tube, Manifold Supply (Replaces: W10892450) |
|
$ 177.42 | ||||||
| ARI130620F5738F97FA53E648D69A4CE80B | (left Front, Left Rear) |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| ARI97EE49875860764C24B1F1C761487B6B | (right) |
|
- |
