Burner Box Parts
Cooktop And Burner Parts
Optional Parts (not Included)
New Model Search:

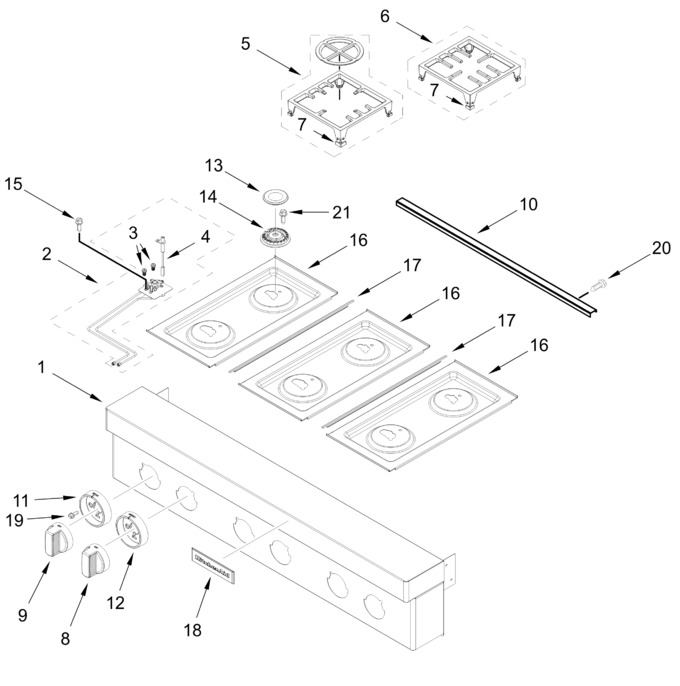

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11785262 | Panel, Console (Replaces: W11700782) |
|
$ 920.35 | |||||
| 2 | W11337062 | Orifice Holder Assembly (Replaces: W10892771) |
|
Immediately | $ 128.25 | ||||
| 3 | W11643164 | Orifice, Main (17.4k) (Replaces: W10892422) |
|
Immediately | $ 60.97 | ||||
| 4 | W11580024 | Igniter (Replaces: W11238758) |
|
Immediately | $ 23.66 | ||||
| 5 | W11380124 | Burner, Grate (with Wok Ring) (Replaces: W11291183) |
|
Immediately | $ 200.19 | ||||
| 6 | W11380128 | Burner, Grate (Replaces: W11291179) |
|
Immediately | $ 183.04 | ||||
| 7 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 12.57 | ||||
| 8 | W11785263 | Knob, Dual (stainless) (Replaces: W11560140) |
|
- | |||||
| 9 | W11785264 | Knob, Single (stainless) (Replaces: W11560138) |
|
- | |||||
| 10 | W11355760 | Trim, Island |
|
$ 246.15 | |||||
| 11 | W11380145 | Bezel (rear Burners) (Replaces: W10883433) |
|
$ 65.07 | |||||
| 12 | W11380146 | Bezel (front Burners) (Replaces: W10881642) |
|
$ 65.07 | |||||
| 13 | W11344538 | Cap, Burner (black, Set Of 6) (Replaces: W11121390) |
|
Immediately | $ 141.29 | ||||
| 14 | W11344539 | Spreader, Flame (Replaces: W10891746) |
|
Immediately | $ 141.16 | ||||
| 15 | 7101P42660 | Screw |
|
- | |||||
| 16 | W11344755 | Panel, Left Cooktop (black) (Replaces: W11038235) |
|
$ 199.76 | |||||
| 17 | W10271524 | Trim, T-strip (black) |
|
$ 212.34 | |||||
| 18 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 19 | W11509770 | Screw (Replaces: W11328357) |
|
$ 14.23 | |||||
| 20 | 7101P33860 | Screw |
|
- | |||||
| 21 | W11643628 | Screw (Replaces: W11323261) |
|
$ 14.75 | |||||
| W11344742 | Spreader, Flame (Replaces: W10891974) |
|
Immediately | $ 134.12 | |||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| W11672510 | Orifice, Main (15k) (Replaces: W10892419) |
|
Immediately | $ 107.87 | |||||
| W11628654 | Igniter (Replaces: W10892340) |
|
Immediately | $ 54.92 | |||||
| W11344746 | Spreader, Flame (Replaces: W10891978) |
|
Immediately | $ 133.20 | |||||
| ARI5F3F33C66B028760CF46AC61DE6BE21E | (left Rear, Center Front, Center Rear, Right Rear) |
|
- | ||||||
| W11381271 | Orifice Holder Assembly (Replaces: W11159468) |
|
Immediately | $ 117.04 | |||||
| W11381273 | Orifice Holder Assembly (Replaces: W10892767) |
|
Immediately | $ 123.40 | |||||
| ARIAF8B2CF0387D82C1B76CFE2500CD62C6 | (left Rear, Right Rear) |
|
- | ||||||
| W11378585 | Orifice Holder Assembly (Replaces: W10892484) |
|
$ 123.22 | ||||||
| ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 | (center Rear) |
|
- | ||||||
| ARID5FC0C9D80A03900EBB467174EE74F38 | (left Rear, Center Front, Right Rear) |
|
- | ||||||
| ARI5D10814EA01143EB5BE4EE5A9E8F71F6 | (center Front) |
|
- | ||||||
| W11344761 | Panel, Right Cooktop (black) (Replaces: W11038248) |
|
$ 199.76 | ||||||
| W11678580 | Screw (Replaces: W11323309) |
|
$ 14.78 | ||||||
| W11344757 | Panel, Center Cooktop (black) (Replaces: W11038257) |
|
$ 199.76 | ||||||
| W10892438 | Orifice, Simmer (5k) |
|
$ 99.86 | ||||||
| W11661909 | Orifice, Simmer (2.6k) (Replaces: W10892435) |
|
Immediately | $ 74.14 |
