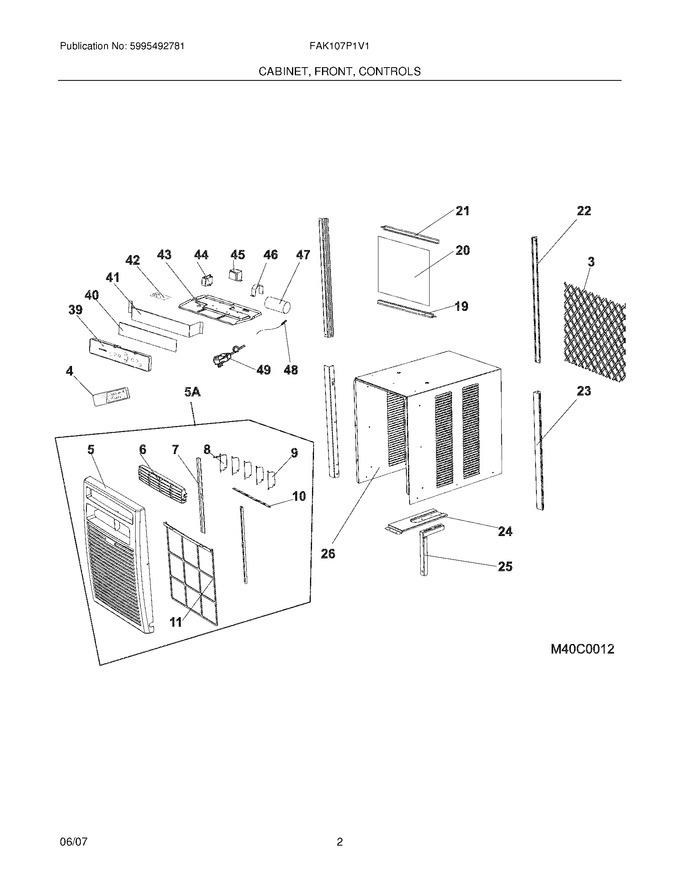

01 - Cover


03 - Cabinet/front/controls


05 - Cooling & Air Flow


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304448083		Grille,plastic Mesh ,rear		Appelez-nous	-
5	5304448084		Panel,grille ,front		Appelez-nous	-
6	5304448085		Louver,horizontal		Appelez-nous	-
7	5304448086		· Bracket,filter Guide ,track		Appelez-nous	-
8	5304448087		Louver,vertical ,with Handle		Appelez-nous	-
9	5304448088		Louver,vertical		Appelez-nous	-
10	5304448089		Link,vertical Louver		Appelez-nous	-
11	5304448090		Filter,air ,plastic Frame				$ 55.02
19	5304448097		Retainer,window Panel ,lower		Appelez-nous	-
20	5304448098		Panel,window Filler ,plastic				$ 62.50
21	5304448099		Retainer,window Panel ,top		Appelez-nous	-
22	5304448100		Slider,window Panel				$ 35.00
23	5304448101		Channel,slide ,side Mount		Appelez-nous	-
24	5304448102		Platform,unit Support		Appelez-nous	-
25	5304448103		Bracket,angle ,cab Support		Appelez-nous	-
26	5304448104		Cabinet,wrapper/sleeve		Appelez-nous	-
39	5304448117		Console,control Cover		Appelez-nous	-
41	5304448119		Cover,control Box ,front Plate		Appelez-nous	-
43	5304448121		Control Box		Appelez-nous	-
46	5304448133		Strap,capacitor Clamp		Appelez-nous	-
5A	5304448487		Front Assembly,complete Panel ,includes 5,6,7,8,9,10,11		Appelez-nous	-
F4	5304447993		Remote Control,transmitter				$ 100.70
F40	5304448118		Pc Board,display/input				$ 201.40
F42	5304448120		Pc Board,control/power		Appelez-nous	-
F44	5304448122		Capacitor,fan Motor		Appelez-nous	-
F45	5304447810		Transformer		Appelez-nous	-
F47	5304448011		Capacitor,run		Appelez-nous	-
F48	5304448125		Thermistor,temp Sensor ,indoor/evap				$ 47.46
F49	5304448126		Power Cord,lcdi ,test/reset		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
