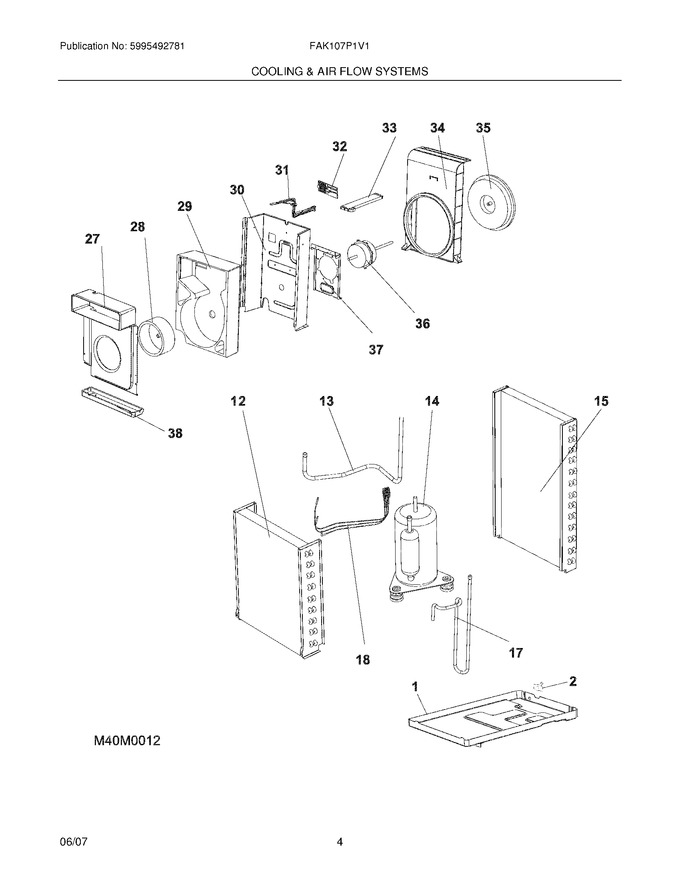

05 - Cooling & Air Flow


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304448080		Base,unit Chassis		Appelez-nous	-
2	5304448082		Plug,drain				$ 8.24
27	5304448130		Adapter,scroll/housing ,front ,air Intake		Appelez-nous	-
29	5304448107		Scroll,blower Housing		Appelez-nous	-
30	5304448108		Bulkhead,partition		Appelez-nous	-
31	5304448109		Lever,vent Opener		Appelez-nous	-
32	5304448110		Door,air Vent Cover		Appelez-nous	-
33	5304448111		Link,lever/vent Door		Appelez-nous	-
37	5304448115		Bracket,fan Motor Mount		Appelez-nous	-
38	5304448116		Tray,drain Pan		Appelez-nous	-
F12	5304448091		Evaporator		Appelez-nous	-
F13	5304448127		Suction Tube		Appelez-nous	-
F14	5304448068		Compressor Assembly,w/electricals ,drier,grommets				$ 231.18
F15	5304448094		Condenser		Appelez-nous	-
F17	5304448128		Discharge Tube		Appelez-nous	-
F18	5304448129		Capillary Tube		Appelez-nous	-
F28	5304448131		Blower Wheel,centrifugal Fan		Appelez-nous	-
F34	5304448112		Shroud,fan Housing		Appelez-nous	-
F35	5304448113		Fan Blade,axial Flow				$ 72.38
F36	5304448132		Motor,fan				$ 350.43
