Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

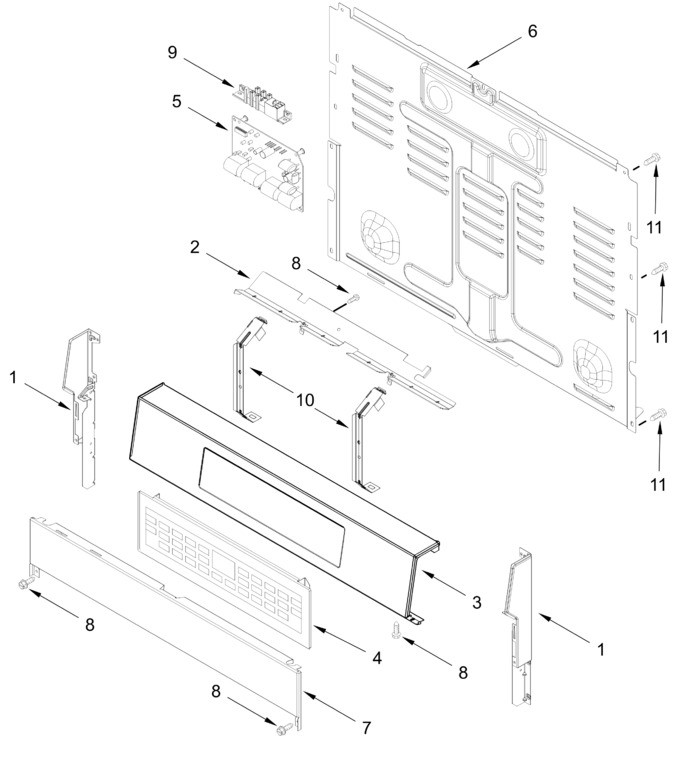

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11728387 | Console, Endcap (stainless, Left) (Replaces: W11625424) |
|
$ 116.19 | |||||
| 2 | W11747326 | Shield, Heat (Replaces: W11736649) |
|
- | |||||
| 3 | W11753205 | Console, Panel (stainless) (Replaces: W11625459) |
|
Immediately | $ 355.83 | ||||
| 4 | W11839362 | User Interface (Replaces: W11791719) |
|
- | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 365.64 | ||||
| 6 | W11727014 | Cover, Upper Rear (Replaces: W11393669) |
|
- | |||||
| 7 | W11730240 | Panel, Lower (stainless) (Replaces: W11625438) |
|
$ 223.68 | |||||
| 8 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 96.65 | ||||
| 10 | W11728256 | Bracket, Control (Replaces: W11371599) |
|
- | |||||
| 11 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| W11728386 | Console, Endcap (stainless, Right) (Replaces: W11625421) |
|
Immediately | $ 116.19 |
