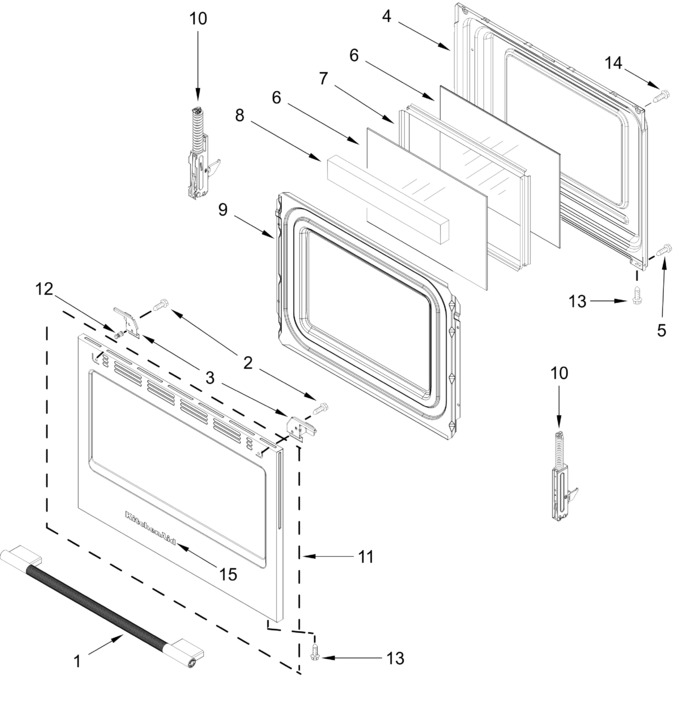

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11773160		Handle (stainless)   (Replaces: W11680261)				$ 128.50
2	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
3	W11726809		Bracket, Handle Mount (left)   (Replaces: W11417442)				$ 29.69
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
8	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
9	W11809823		Retainer, Insulation   (Replaces: W11788182)		Appelez-nous	-
10	WPW10440013		Hinge, Door (active)   (Replaces: W10388635)			Immediately	$ 63.80
11	W11795880		Door Assembly (stailess)   (Replaces: W11756893)		Appelez-nous	-
12	W11773159		Stud   (Replaces: W11687274)				$ 29.86
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
14	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
15	W11759445		Badge   (Replaces: W11688412)			Immediately	$ 50.32
	W11726808		Bracket, Handle Mount (right)   (Replaces: W11157607)		Appelez-nous	-
	WPW10440013		Hinge, Door (active, Full Glass)   (Replaces: W10440013)			Immediately	$ 63.80
