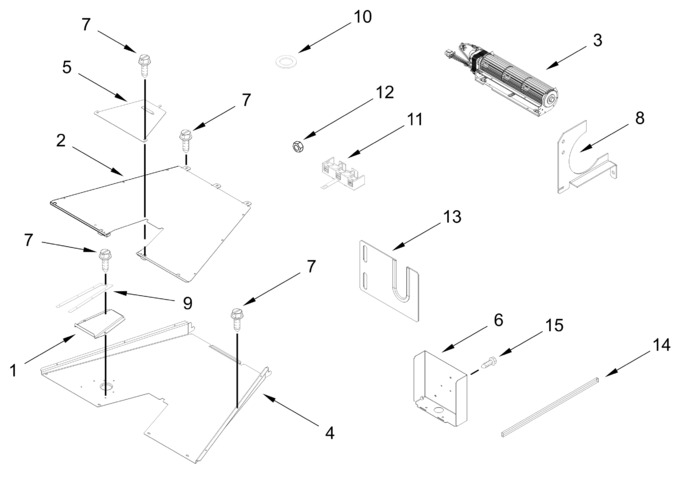

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10818234		Slope, Exhaust Vent (30 In)		Appelez-nous	-
2	W11320402		Vent, Cooling Top (30 In)   (Replaces: W11105223)				$ 139.98
3	W11248652		Blower   (Replaces: W11200129)			Immediately	$ 432.87
4	W11320403		Vent, Cooling Bottom (30 In)   (Replaces: W11105222)		Appelez-nous	-
5	W11320405		Plate, Cooling Latch   (Replaces: W11109518)		Appelez-nous	-
6	W11353392		Box, Terminal		Appelez-nous	-
7	7101P42660		Screw		Appelez-nous	-
8	W11047754		Bracket, Blower Mount		Appelez-nous	-
9	W10270397		Seal, Vent Slope (30 In)		Appelez-nous	-
10	W10270396		Seal, Chimney		Appelez-nous	-
11	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 47.96
12	WP112432		Nut, Hex   (Replaces: 112432)				$ 8.63
13	W11320407		Cover, Channel   (Replaces: W11106956)		Appelez-nous	-
14	W11175143		Gasket   (Replaces: W10919715)			Immediately	$ 24.62
15	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 7.55
	W10270402		Seal, Vent Slope (18 In)		Appelez-nous	-
	W10818235		Slope, Exhaust Vent (18 In)		Appelez-nous	-
	W11320598		Vent, Cooling Bottom (18 In)   (Replaces: W11113378)		Appelez-nous	-
	W11320597		Vent, Cooling Top (18 In)   (Replaces: W11113380)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
