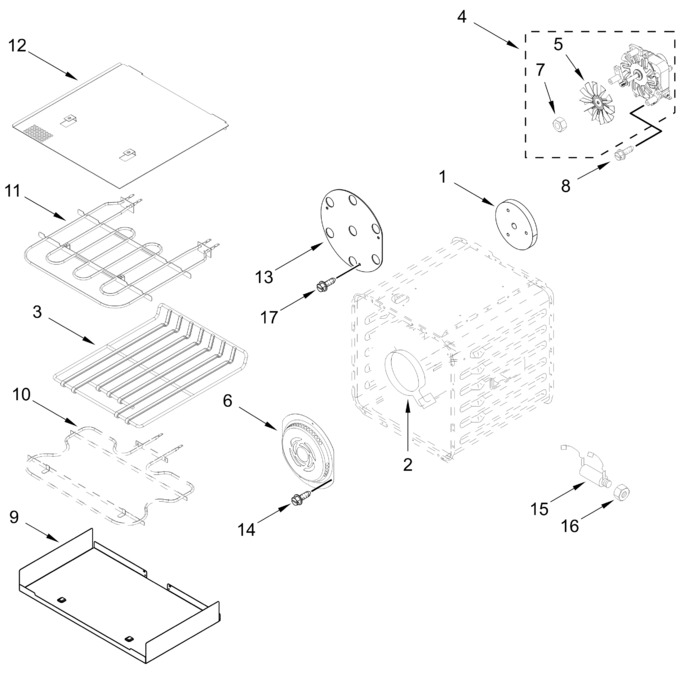

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11688507		Insulation, Convection Cover   (Replaces: W10282821)			Immediately	$ 27.10
2	W11643125		Element, Convection Steam   (Replaces: 9762242)			Immediately	$ 126.84
3	W11111351		Rack, Oven (18 In)				$ 161.52
4	W11685616		Needs Description   (Replaces: W11121400)			Immediately	$ 269.61
5	W11320150		Blade, Fan   (Replaces: W11108376)				$ 342.64
6	W11368180		Cover, Fan		Appelez-nous	-
7	W10794042		Nut, Acorn (left Hand Thread)   (Replaces: W10631504)				$ 13.14
8	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
9	W11320538		Tray, Hidden Bake   (Replaces: W11110223)		Appelez-nous	-
10	ARIF93179EB3F6CD1D1805E65CA61F82AAB		Element, Hidden Bake (not Serviced)		Appelez-nous	-
11	W10116010		Element, Broil				$ 131.23
12	W10160855		Shield, Element Broil		Appelez-nous	-
13	W10261523		Plate, Fan				$ 77.85
14	W10739592		Screw		Appelez-nous	-
15	8186589		Jack, Meat Probe   (Replaces: 9755543)				$ 159.30
16	WP9755546		Nut, Hidden   (Replaces: 9755546)				$ 7.30
17	W10850807		Screw   (Replaces: W10720084)				$ 7.77

    View Diagram in Separate Window       Print Part List
