SELECT A DIAGRAM

Diagram for Burner Box And Griddle Parts
Burner Box And Griddle Parts

Diagram for Chassis Parts
Chassis Parts

Diagram for Cooktop, Burner And Grate Parts
Cooktop, Burner And Grate Parts

Diagram for Internal Oven Parts
Internal Oven Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Oven Door Parts
Oven Door Parts

Diagram for Oven Parts
Oven Parts

Diagram for Venting Parts
Venting Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI4741983F61CAC445F12C0C1FD1B613C1 Literature Parts Appelez-nous -
2 W11785277 Valve Manifold Assembly   (Replaces: W11651412) Appelez-nous -
3 W11785278 Switch, Harness   (Replaces: W11596339) Appelez-nous -
4 W11320153 Bracket, Manifold   (Replaces: W11121194) Special Order $ 79.97

5 W11818690 Module, Spark   (Replaces: W11121317) In-Stock Immediately $ 81.60

6 W11330430 Tray, Griddle Insulation Appelez-nous -
7 W11319226 Bracket, Griddle-rtd   (Replaces: W11121384) Appelez-nous -
8 W11333177 Tube, Manifold Supply   (Replaces: W10892370) Appelez-nous -
9 W11602621 Griddle Module Assembly   (Replaces: W11505236) In-Stock Immediately $ 1,547.02

10 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 7.55

11 W11320155 Bracket, Pressure Regulator   (Replaces: W11096823) Appelez-nous -
12 ARIDBAA9548A1EB15B27ADE369B6B57A1AD Box, Burner (not Serviced) Appelez-nous -
13 W11319618 Sensor, Griddle   (Replaces: W10891584) Special Order $ 228.48

14 W10162096 Screw Special Order $ 21.90

15 W11319228 Insulation, Griddle   (Replaces: W11121383) Appelez-nous -
16 4453116 Adapter, Male Special Order $ 179.43

17 W10276497 Tray, Griddle Drip Special Order $ 404.03

18 W11319602 Element, Griddle   (Replaces: W10891698) Special Order $ 369.48

19 W11602622 Module, Griddle   (Replaces: W11360151) Appelez-nous -
20 W11106948 Regulator, Pressure   (Replaces: W10449140) In-Stock Immediately $ 238.90

21 W11320154 Tube, Pressure Regulator   (Replaces: W11106963) Special Order $ 185.91

ARIF4444C9CC15AF901E399B849F8A4059C (right Front And Right Rear) Appelez-nous -
W11428599 Kit, Lp Conversion   (Replaces: W11422176) In-Stock Immediately $ 47.84

ARI55C06F183F5209A80F64451115E0C931 (left) Appelez-nous -
ARI7C4B781E09F4C135E8A56A812FBF5A4D Following Parts Not Illustrated Appelez-nous -
W11317791 Harness, Wifi   (Replaces: W11242785) Special Order $ 113.72

W11321066 Cord, Power   (Replaces: W11212216) Special Order $ 118.94

W11317787 Harness, Griddle   (Replaces: W10903727) Special Order $ 116.76

W10780278 Harness, Door Lock In-Stock Immediately $ 95.87

W11544575 Bracket, Anti-tip   (Replaces: W10253333) Special Order $ 59.88

WP9759877 Retainer, Strain Relief   (Replaces: 9759877) Special Order $ 20.21

7101P48560 Screw, Anti-tip Kit Appelez-nous -
4450800 Screw, Grounding Special Order $ 13.47

W11200326 Harness, Cooktop Appelez-nous -
W11169708 Screw   (Replaces: 3196560) Special Order $ 13.36

16515 Clip, Harness   (Replaces: 313438) Special Order $ 20.53

W11785276 Valve Manifold Assembly   (Replaces: W11651413) Appelez-nous -
W11565461 Wiring Diagram (oven) Appelez-nous -
W11508930 Wiring Diagram (cooktop) Appelez-nous -
W11508899 Use And Care Guide Appelez-nous -
W11508890 Install Instructions Appelez-nous -
W11200314 Harness, Main (36 In) Appelez-nous -
W11333178 Tube, Manifold Supply   (Replaces: W10892443) Appelez-nous -
W11202265 Sheet, Tech Appelez-nous -
W11184746 Guide, Internet Connectivity Appelez-nous -
ARI5A21FEE31EB202DDA189D0EC8CA36187 (left Front, Left Rear) Appelez-nous -
ARI97EE49875860764C24B1F1C761487B6B (right) Appelez-nous -
W11200325 Harness, Communication Special Order $ 116.19


    View Diagram in Separate Window     Print Icon   Print Part List

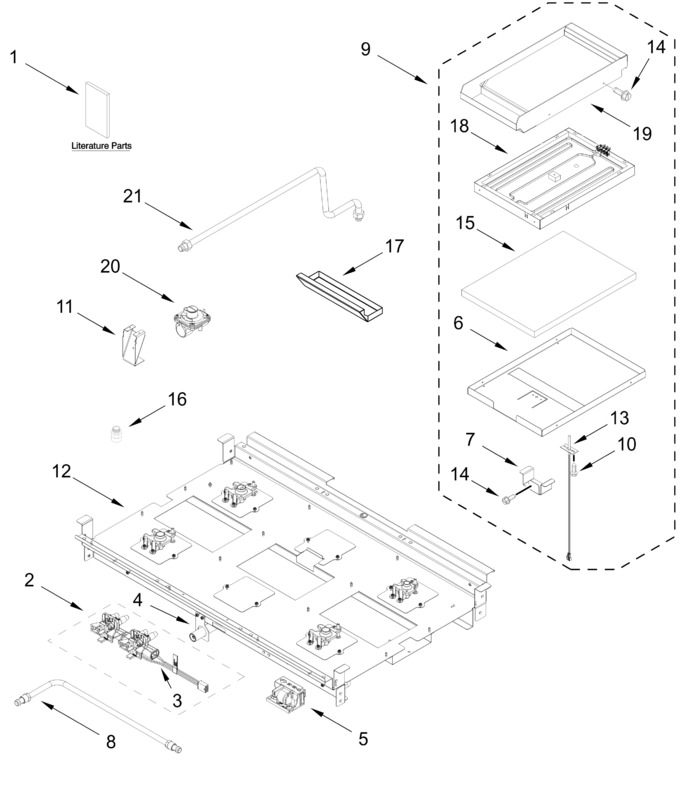

Diagram for JDRP536HM03
