Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11444077 Panel, Cooktop   (Replaces: W10878253) Special Order $ 940.19

2 W11333305 Orifice Holder Assembly   (Replaces: W10892793) Special Order $ 125.39

3 W11643164 Orifice, Main (17.4k)   (Replaces: W10892422) In-Stock Immediately $ 60.97

4 W11573760 Igniter   (Replaces: W11238757) In-Stock Immediately $ 23.48

5 W11516449 Grate Assembly (black)   (Replaces: W11291180) Special Order $ 265.06

6 W11516462 Grate Assembly (black)   (Replaces: W11291182) Special Order $ 265.07

7 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 12.57

8 W11320149 Barrier, Appliance Manager   (Replaces: W11281269) Special Order $ 130.57

9 W11492269 User Interface   (Replaces: W11436324) In-Stock Immediately $ 573.94

10 W11320411 Cover, Wifi Outer   (Replaces: W11205795) Appelez-nous -
11 W11317889 Bezel (stainless)   (Replaces: W11090284) Special Order $ 106.87

12 W11234290 Wifi Module Assembly   (Replaces: W11110768) Special Order $ 179.89

13 W11328971 Cap, Burner (black, Set Of 4)   (Replaces: W11121391) Special Order $ 173.40

14 W11319683 Spreader, Flame (high)   (Replaces: W10891987) In-Stock Immediately $ 250.69

15 W11318207 Spring Clip, Range   (Replaces: W11036559) Special Order $ 12.88

16 W11317886 Knob, Oven Mode (stainless)   (Replaces: W10891869) Special Order $ 327.75

17 ARIED961ACF1DFB3262BCF1A3D165D9DAED Griddle Module Assembly (see Burner Box And Griddle Parts Page) Appelez-nous -
18 W11316700 Panel, Left Cooktop   (Replaces: W11038237) Special Order $ 502.01

19 W11333312 Panel, Right Cooktop   (Replaces: W11038253) Special Order $ 475.25

20 W11317536 Knob, Griddle (stainless)   (Replaces: W10891923) Special Order $ 148.63

21 W10130760 Bracket, Moving Console (left) Special Order $ 75.94

22 W11509770 Screw   (Replaces: W11328357) Special Order $ 14.23

23 W11766499 Screw   (Replaces: W11323260) In-Stock Immediately $ 12.72

24 W11791681 Knob, Dual (stainless)   (Replaces: W11560135) Appelez-nous -
25 7101P62460 Screw Appelez-nous -
26 W11317890 Bezel, Griddle (stainless)   (Replaces: W11104967) Special Order $ 109.56

27 W11317892 Bezel, Oven (stainless)   (Replaces: W11042375) Special Order $ 110.74

28 W11317539 Knob, Oven Temperature (stainless)   (Replaces: W10891868) Special Order $ 154.22

29 W11320410 Cover, Wifi Inner   (Replaces: W11205794) Appelez-nous -
30 W10116114 Light, Indicator Housing In-Stock Immediately $ 93.57

31 W10294500 Lens, Indicator Light Special Order $ 7.69

32 W10291193 Trim, L-strip Appelez-nous -
33 7101P42660 Screw Appelez-nous -
34 W11318834 Control, Griddle   (Replaces: W11033497) Special Order $ 356.52

35 WP3400814 Screw   (Replaces: 3400814) Special Order $ 4.62

36 W11319196 Button Assembly, Oven Start   (Replaces: W11090650) Special Order $ 23.67

37 W11156416 Trim, Island Special Order $ 249.31

38 W11318857 Button Assembly, Oven Light   (Replaces: W11090651) Special Order $ 23.81

39 W11318856 Light Pipe Assembly   (Replaces: W10896369) Special Order $ 109.35

40 W11318855 Antenna, Wifi   (Replaces: W11130078) Special Order $ 228.92

41 W10674068 Screw Special Order $ 24.39

42 W11690997 Manager, Appliance (powermax)   (Replaces: W11100268) Special Order $ 460.27

43 W11123146 Speaker Assembly   (Replaces: W10568405) Special Order $ 80.93

44 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

45 7101P33860 Screw Appelez-nous -
46 3196265 Screw   (Replaces: 3400099) Appelez-nous -
ARI58AF8D252016DDED824FB66FD9161A41 (for 4 Cooktop Burners) Appelez-nous -
ARI8EE4F5E59D536F62986D20F6E6C7927B (left Front, Left Rear, Right Front) Appelez-nous -
ARI283693F3486669333C7F1EE938CD8A5B (right Rear) Appelez-nous -
ARIA12C7E5D311C54B1AACBC1820DF34957 (right Front) Appelez-nous -
W10130759 Bracket, Moving Console (right) Special Order $ 75.94

W11661909 Orifice, Simmer (2.6k)   (Replaces: W10892435) In-Stock Immediately $ 74.14

W11620688 Orifice Holder Assembly   (Replaces: W11505833) Appelez-nous -
ARI76BF577D359F4F7B6AC1C45BB9FB0006 (left Front) Appelez-nous -
W11238756 Igniter In-Stock Immediately $ 67.96

ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 (left Rear) Appelez-nous -
ARI3CCC6EF4AF791FA50D2D2DAAC8BCDBD4 (for 2 Oven Knobs) Appelez-nous -
W11333309 Orifice Holder Assembly   (Replaces: W10892730) Special Order $ 122.96

W10892440 Orifice, Main (7.2k) Special Order $ 99.86

W11333306 Orifice Holder Assembly   (Replaces: W10892494) In-Stock Immediately $ 127.98

W10892418 Orifice, Main (15.4k) In-Stock Immediately $ 103.03

W10892429 Orifice, Simmer (2.0k) Special Order $ 99.86

W11319673 Spreader, Flame (low)   (Replaces: W10892022) In-Stock Immediately $ 229.46

ARI331AC8E6A0B32951011383800D6FC3B6 (left Front, Right Front) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

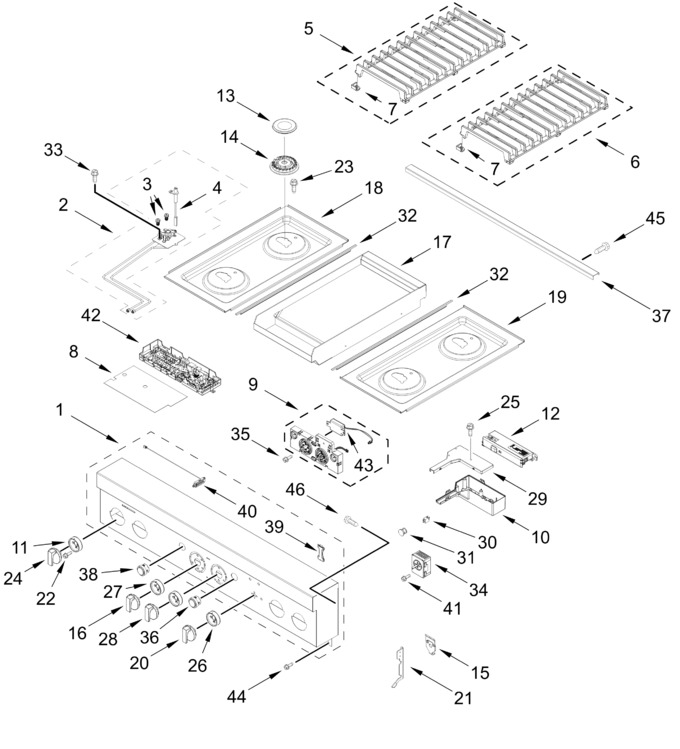

Diagram for JDRP536HM03
