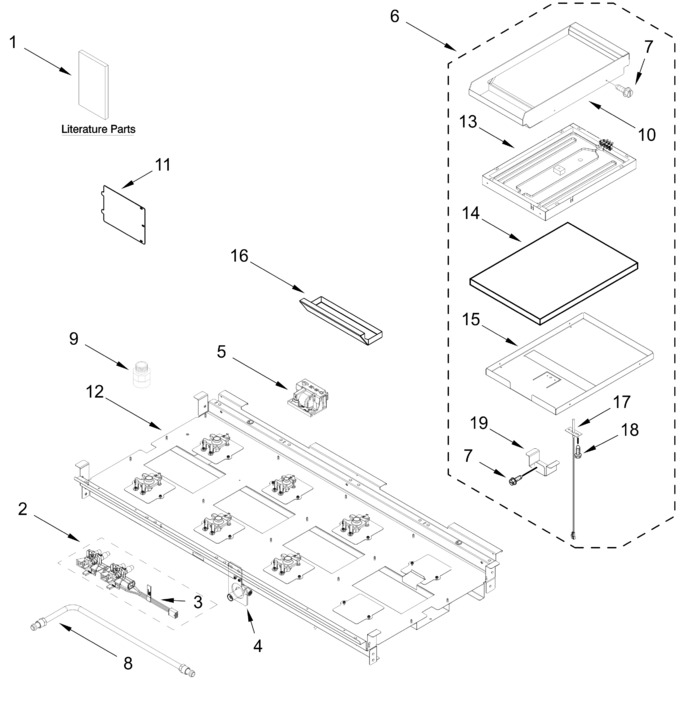

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11785683 | Valve Manifold Assembly (Replaces: W11651415) |
|
$ 534.74 | |||||
| 3 | W11785278 | Switch, Harness (Replaces: W11596339) |
|
- | |||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 79.97 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 81.60 | ||||
| 6 | W11602621 | Griddle Module Assembly (Replaces: W11505236) |
|
Immediately | $ 1,547.02 | ||||
| 7 | W10162096 | Screw |
|
$ 21.90 | |||||
| 8 | W11320029 | Tube, Manifold Supply (Replaces: W10892784) |
|
- | |||||
| 9 | 4453116 | Adapter, Male |
|
$ 179.43 | |||||
| 10 | W11602622 | Module, Griddle (Replaces: W11360151) |
|
- | |||||
| 11 | W10115843 | Cover, Ignition |
|
- | |||||
| 12 | ARIDBAA9548A1EB15B27ADE369B6B57A1AD | Box, Burner (not Serviced) |
|
- | |||||
| 13 | W11319602 | Element, Griddle (Replaces: W10891698) |
|
$ 369.48 | |||||
| 14 | W11319228 | Insulation, Griddle (Replaces: W11121383) |
|
- | |||||
| 15 | W11330430 | Tray, Griddle Insulation |
|
- | |||||
| 16 | W10276497 | Tray, Griddle Drip |
|
$ 404.03 | |||||
| 17 | W11319618 | Sensor, Griddle (Replaces: W10891584) |
|
$ 228.48 | |||||
| 18 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 19 | W11319226 | Bracket, Griddle-rtd (Replaces: W11121384) |
|
- | |||||
| W11565464 | Wiring Diagram (oven) |
|
- | ||||||
| W11200316 | Harness, Main (30") |
|
- | ||||||
| ARI96BA0D36FA6A631E80C7BFCE86BF12CD | (left Center) |
|
- | ||||||
| W11317791 | Harness, Wifi (Replaces: W11242785) |
|
$ 113.72 | ||||||
| W11321066 | Cord, Power (Replaces: W11212216) |
|
$ 118.94 | ||||||
| W11317786 | Harness, Communication (Replaces: W11200318) |
|
Immediately | $ 131.85 | |||||
| W11317788 | Harness, Cooktop (Replaces: W11200329) |
|
Immediately | $ 206.07 | |||||
| W11317787 | Harness, Griddle (Replaces: W10903727) |
|
$ 116.76 | ||||||
| W10780278 | Harness, Door Lock |
|
Immediately | $ 95.87 | |||||
| W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 59.88 | ||||||
| 7101P48560 | Screw, Anti-tip Kit |
|
- | ||||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11200313 | Harness, Main (18") |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| WP112432 | Nut, Hex (Replaces: 112432) |
|
$ 8.63 | ||||||
| W11508931 | Wiring Diagram (cooktop) |
|
- | ||||||
| W11320027 | Tube, Manifold Supply (Replaces: W10892775) |
|
- | ||||||
| W11320139 | Tube, Manifold Supply (Replaces: W10892789) |
|
- | ||||||
| W11785686 | Valve Manifold Assembly (Replaces: W11651408) |
|
- | ||||||
| W11785685 | Valve Manifold Assembly (Replaces: W11651409) |
|
$ 534.74 | ||||||
| W11508899 | Use And Care Guide |
|
- | ||||||
| W11508890 | Install Instructions |
|
- | ||||||
| W11428599 | Kit, Lp Conversion (Replaces: W11422176) |
|
Immediately | $ 47.84 | |||||
| ARIE247FF0AF4946933F00DB02218E8929B | (left Center Front, Left Center Rear) |
|
- | ||||||
| ARI258DA94C9CF5E70E3AC8179901954C3C | (right Center Front, Right Center Rear) |
|
- | ||||||
| W11184746 | Guide, Internet Connectivity |
|
- | ||||||
| ARI130620F5738F97FA53E648D69A4CE80B | (left Front, Left Rear) |
|
- | ||||||
| ARI5176DC7BCD528CAA83FE8E7749EF8817 | (right Center) |
|
- | ||||||
| ARI55C06F183F5209A80F64451115E0C931 | (left) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
