Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11112336		Bracket, Broil Front		Appelez-nous	-
2	W11688507		Insulation, Convection Cover   (Replaces: W10282821)			Immediately	$ 27.10
3	W11318341		Probe, Wireless Meat   (Replaces: W11186918)				$ 204.08
4	W11563568		Rack, Sliding Oven   (Replaces: W11491351)				$ 321.05
5	W11158843		Bracket, Broil Top		Appelez-nous	-
6	W11232487		Baffle, Convection				$ 242.79
7	W11685616		Needs Description   (Replaces: W11121400)			Immediately	$ 269.61
8	W11320150		Blade, Fan   (Replaces: W11108376)				$ 342.64
9	W10261523		Plate, Fan				$ 77.85
10	W10794042		Nut, Acorn (left Hand Thread)   (Replaces: W10631504)				$ 13.14
11	W10116434		Element, Convection				$ 342.58
12	W11111391		Cover, Broil Terminal		Appelez-nous	-
13	WP9755542		Probe, Temperature   (Replaces: 9755542)			Immediately	$ 92.12
14	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
15	8186589		Jack, Meat Probe   (Replaces: 9755543)			Immediately	$ 108.02
16	WP9755546		Nut, Hidden   (Replaces: 9755546)				$ 7.30
17	W10739592		Screw		Appelez-nous	-
18	W11170823		Cover Plate, Terminal Hole		Appelez-nous	-
19	W11210530		Element, Broil				$ 542.44
20	W10850807		Screw   (Replaces: W10720084)				$ 7.77
21	ARIF93179EB3F6CD1D1805E65CA61F82AAB		Element, Hidden Bake (not Serviced)		Appelez-nous	-
22	W11320540		Tray, Hidden Bake   (Replaces: W11109421)		Appelez-nous	-
23	W11193191		Glass, Broil Element		Appelez-nous	-

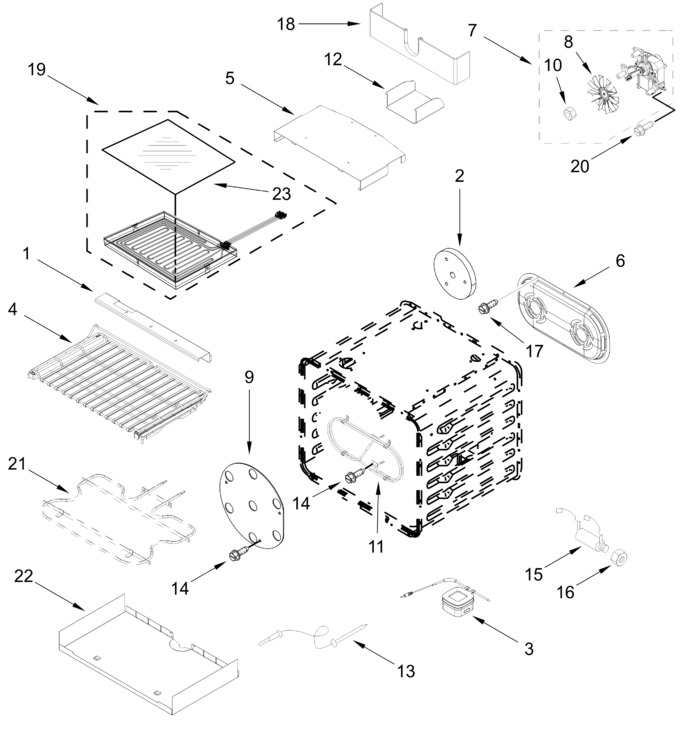

    View Diagram in Separate Window       Print Part List
