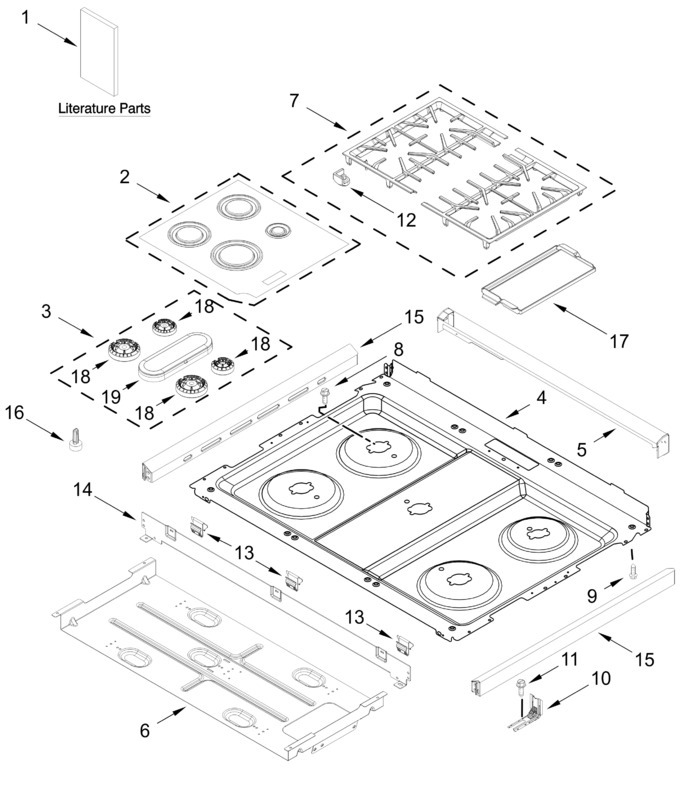

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11747335		Burner, Cap Kit (black)   (Replaces: W11636608)		Appelez-nous	-
3	W11728823		Burner Kit   (Replaces: W11635708)				$ 180.92
4	W11730423		Cooktop (black)   (Replaces: W11279786)				$ 332.69
5	W11747659		Vent, Trim   (Replaces: W11632438)				$ 202.83
6	W11758685		Box, Burner   (Replaces: W11388381)				$ 341.19
7	W11729009		Grate Kit (black)   (Replaces: W11601432)				$ 358.47
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
9	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
10	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 23.03
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W11729100		Grate, Bumper   (Replaces: W11672010)				$ 13.71
13	W11728827		Spring, Clip   (Replaces: W11637551)		Appelez-nous	-
14	W11750421		Cooktop, Front Bracket   (Replaces: W11736687)		Appelez-nous	-
15	W11729931		Cooktop, Frame Bracket (black)   (Replaces: W11367962)				$ 171.56
16	8016P02260		Glide, Main Top		Appelez-nous	-
17	W11730472		Griddle   (Replaces: W11601635)				$ 224.30
18	W11747336		Spreader, Flame   (Replaces: W11352019)				$ 41.07
19	W11475513		Oval Spreader Flame, Assembly   (Replaces: W11357363)				$ 109.81
	W11729549		Tech Sheet		Appelez-nous	-
	W11726686		Owner's Manual		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11435630		Spreader, Flame   (Replaces: W11352018)			Immediately	$ 82.12
	W11435657		Spreader, Flame   (Replaces: W11352021)				$ 84.43
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11721662		Quick Start Guide		Appelez-nous	-
	W11770982		Harness, Main   (Replaces: W11669851)		Appelez-nous	-
	W11771002		Harness, Dc   (Replaces: W11671200)			Immediately	$ 177.07
	W11730272		Harness, Bake   (Replaces: W11454086)			Immediately	$ 59.10
	ARIB611E097F24A5B39CE73CD94D5F3EAC2		(left Front, Right Rear)		Appelez-nous	-
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	3196896		Clip, Wire		Appelez-nous	-
	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
