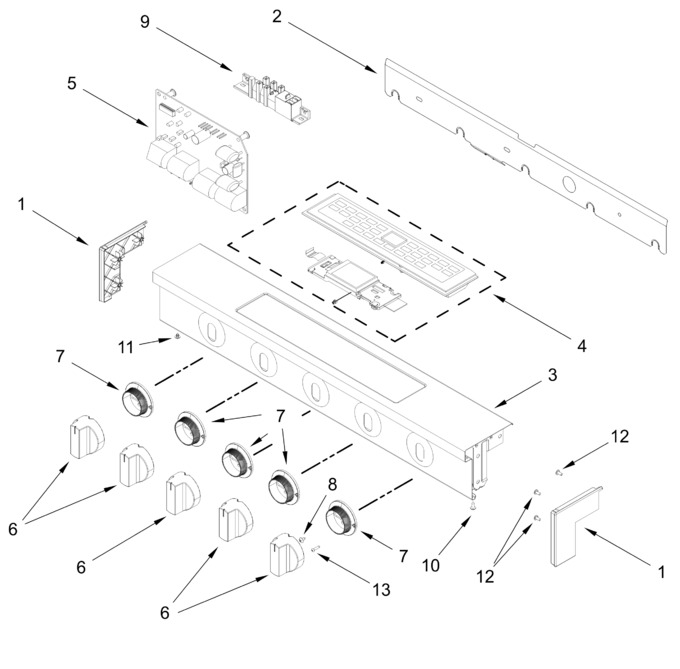

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11776704 | Panel, Manifold End Cap (stainless, Left) (Replaces: W11628504) |
|
$ 67.63 | |||||
| 2 | W11747644 | Deflector, Bracket (Replaces: W11619830) |
|
- | |||||
| 3 | W11776706 | Control Panel (stainless (Replaces: W11685754) |
|
$ 409.15 | |||||
| 4 | W11776707 | Control, User Interface (Replaces: W11688271) |
|
- | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 365.64 | ||||
| 6 | W11776708 | Knob (stainless) (Replaces: W11674307) |
|
$ 54.33 | |||||
| 7 | W11730329 | Bezel (stainless) (Replaces: W11374916) |
|
Immediately | $ 62.32 | ||||
| 8 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 96.65 | ||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 12 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 13 | W11674763 | Screw (Replaces: W10919387) |
|
$ 14.76 | |||||
| W11776705 | Panel, Manifold End Cap (stainless, Right) (Replaces: W11628601) |
|
$ 67.63 |
