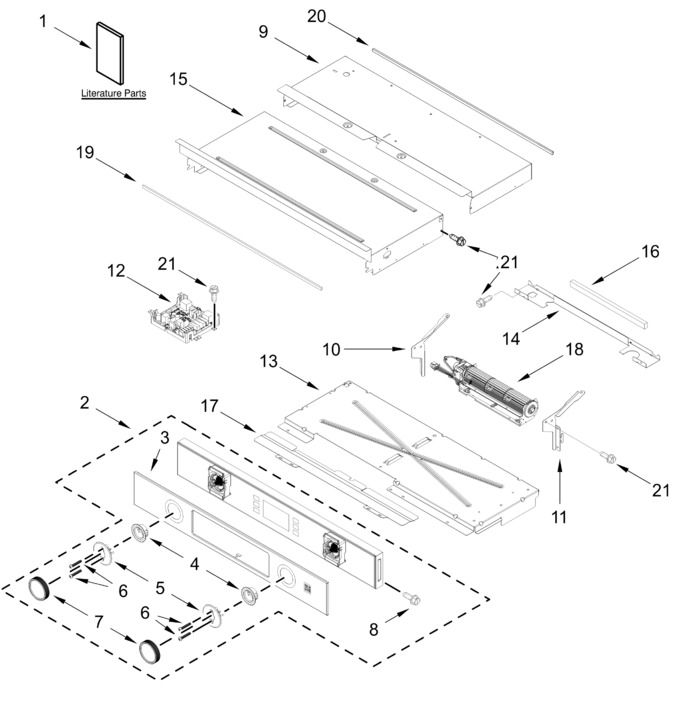

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11795213 | Control Panel Assembly (stainless) (Replaces: W11740944) |
|
- | |||||
| 3 | W11781351 | Skin, Control Panel (stainless) (Replaces: W11684498) |
|
$ 177.07 | |||||
| 4 | W11781353 | Guide, Light (Replaces: W11684650) |
|
- | |||||
| 5 | W11781354 | Bezel (Replaces: W11685047) |
|
- | |||||
| 6 | W11781355 | Screw (Replaces: W11718518) |
|
- | |||||
| 7 | W11812078 | Knob (stainless) (Replaces: W11684658) |
|
- | |||||
| 8 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 14.72 | |||||
| 9 | W11223325 | Cover, 30 In Chassis Top (back) |
|
$ 85.77 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12 | W11781408 | Appliance Manager (Replaces: W11769874) |
|
$ 461.90 | |||||
| 13 | W11758703 | Tray, Electronic (Replaces: W11645754) |
|
- | |||||
| 14 | W11754858 | Divider, Chassis Back (Replaces: W11664750) |
|
- | |||||
| 15 | W11789693 | Cover, 30 In Chassis Top (front) (Replaces: W11767801) |
|
- | |||||
| 16 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 17 | W11785244 | Extender, Electronic Tray (Replaces: W11776863) |
|
- | |||||
| 18 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 388.25 | ||||
| 19 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 20 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 21 | 7101P42660 | Screw |
|
- | |||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11781371 | Harness, Comm And Eol (Replaces: W11774314) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 23.47 | ||||||
| W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 61.80 | ||||||
| 4448664 | Clamp, Conduit |
|
$ 21.41 | ||||||
| W11768053 | Quick Start Guide |
|
- | ||||||
| W11760865 | Owners Manual |
|
- | ||||||
| W11692493 | Tech Sheet |
|
- | ||||||
| W11759574 | Harness, Main (Replaces: W11476484) |
|
Immediately | $ 250.05 | |||||
| W11759571 | Harness, Signal (Replaces: W11476487) |
|
$ 139.03 | ||||||
| W10487999 | Clip, Harness |
|
$ 21.12 | ||||||
| W11233570 | Harness, Console |
|
Immediately | $ 234.66 | |||||
| W10655464 | Bracket, Harness |
|
$ 40.71 |
