New Model Search:

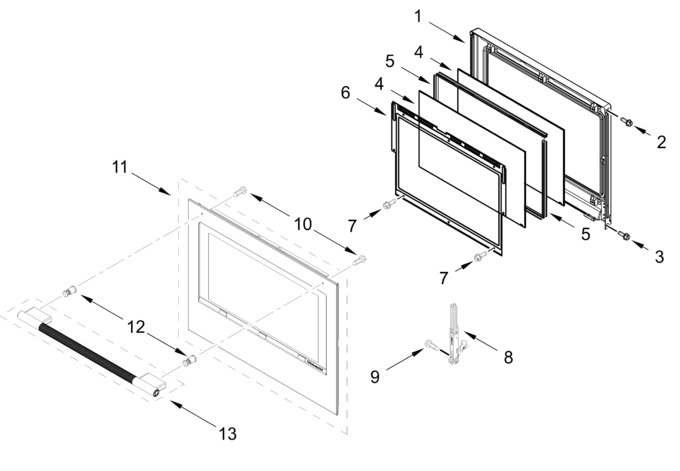

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11768649 | Liner Assembly (Replaces: W11699126) |
|
Immediately | $ 303.81 | ||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 14.77 | |||||
| 4 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
$ 247.71 | |||||
| 5 | W11736671 | Spacer, Air Divider (Replaces: W11647160) |
|
Immediately | $ 72.09 | ||||
| 6 | W11598182 | Retainer, Air Divider Glass (Replaces: W11174095) |
|
Immediately | $ 81.53 | ||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11785245 | Hinge, Door (left) (Replaces: W11755833) |
|
- | |||||
| 9 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 10 | W11749091 | Screw (black) (Replaces: W11707001) |
|
$ 12.34 | |||||
| 11 | W11795850 | Door Assembly (stainless) (Replaces: W11680667) |
|
Immediately | $ 2,041.43 | ||||
| 12 | W11773159 | Stud (Replaces: W11687274) |
|
$ 29.86 | |||||
| 13 | W11773160 | Handle (stainless) (Replaces: W11680261) |
|
$ 128.50 | |||||
| W11785246 | Hinge, Door (right) (Replaces: W11755834) |
|
- |
