SELECT A DIAGRAM

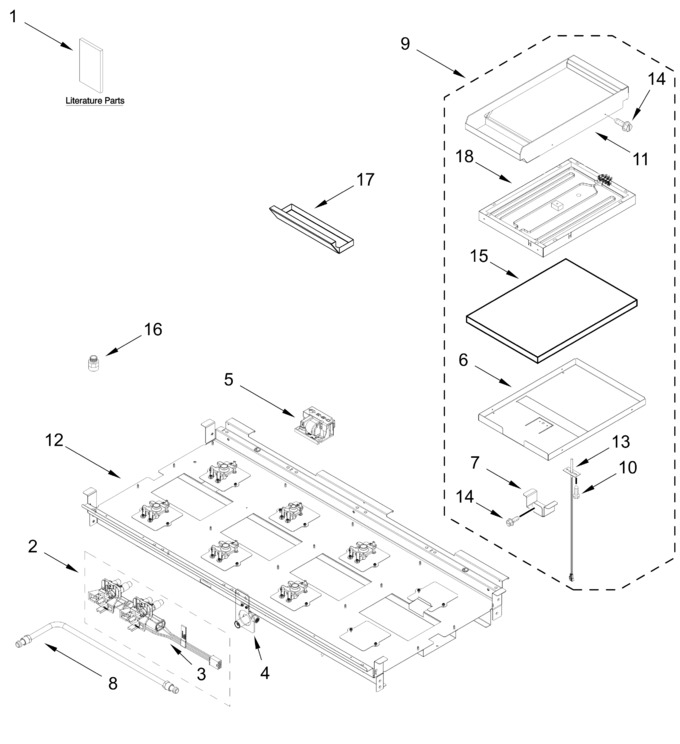

Burner Box And Griddle Parts


Chassis Parts (48 In)


Cooktop, Burner And Grate Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11785683		Valve Manifold Assembly   (Replaces: W11651415)				$ 534.74
3	W11785278		Switch, Harness   (Replaces: W11596339)		Appelez-nous	-
4	W11320153		Bracket, Manifold   (Replaces: W11121194)				$ 79.97
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 81.60
6	W11330430		Tray, Griddle Insulation		Appelez-nous	-
7	W11319226		Bracket, Griddle-rtd   (Replaces: W11121384)		Appelez-nous	-
8	W11320029		Tube, Manifold Supply   (Replaces: W10892784)		Appelez-nous	-
9	W11602621		Griddle Module Assembly   (Replaces: W11505236)			Immediately	$ 1,547.02
10	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
11	W11602622		Module, Griddle   (Replaces: W11360151)		Appelez-nous	-
12	ARIDBAA9548A1EB15B27ADE369B6B57A1AD		Box, Burner (not Serviced)		Appelez-nous	-
13	W11319618		Sensor, Griddle   (Replaces: W10891584)				$ 228.48
14	W10162096		Screw				$ 21.90
15	W11319228		Insulation, Griddle   (Replaces: W11121383)		Appelez-nous	-
16	4453116		Adapter, Male				$ 179.43
17	W10276497		Tray, Griddle Drip				$ 404.03
18	W11319602		Element, Griddle   (Replaces: W10891698)				$ 369.48
	W11317787		Harness, Griddle   (Replaces: W10903727)				$ 116.76
	W11565463		Wiring Diagram (oven)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	ARI96BA0D36FA6A631E80C7BFCE86BF12CD		(left Center)		Appelez-nous	-
	W11317791		Harness, Wifi   (Replaces: W11242785)				$ 113.72
	W11321066		Cord, Power   (Replaces: W11212216)				$ 118.94
	W11317786		Harness, Communication   (Replaces: W11200318)			Immediately	$ 131.85
	W11317788		Harness, Cooktop   (Replaces: W11200329)			Immediately	$ 206.07
	W11317789		Harness, Main (18 In)   (Replaces: W11200311)				$ 248.36
	W10780278		Harness, Door Lock			Immediately	$ 95.87
	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 20.21
	W11508931		Wiring Diagram (cooktop)		Appelez-nous	-
	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
	4450800		Screw, Grounding				$ 13.47
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11320139		Tube, Manifold Supply   (Replaces: W10892789)		Appelez-nous	-
	W11785686		Valve Manifold Assembly   (Replaces: W11651408)		Appelez-nous	-
	W11785685		Valve Manifold Assembly   (Replaces: W11651409)				$ 534.74
	W11508899		Use And Care Guide		Appelez-nous	-
	W11508890		Install Instructions		Appelez-nous	-
	W11428599		Kit, Lp Conversion   (Replaces: W11422176)			Immediately	$ 47.84
	ARIE247FF0AF4946933F00DB02218E8929B		(left Center Front, Left Center Rear)		Appelez-nous	-
	W11317790		Harness, Main (30")   (Replaces: W11200315)				$ 247.76
	W11320027		Tube, Manifold Supply   (Replaces: W10892775)		Appelez-nous	-
	ARI258DA94C9CF5E70E3AC8179901954C3C		(right Center Front, Right Center Rear)		Appelez-nous	-
	W11184746		Guide, Internet Connectivity		Appelez-nous	-
	ARI5A21FEE31EB202DDA189D0EC8CA36187		(left Front, Left Rear)		Appelez-nous	-
	ARI5176DC7BCD528CAA83FE8E7749EF8817		(right Center)		Appelez-nous	-
	ARI55C06F183F5209A80F64451115E0C931		(left)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
