Burner Box And Griddle Parts


Chassis Parts (48 In)


Cooktop, Burner And Grate Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

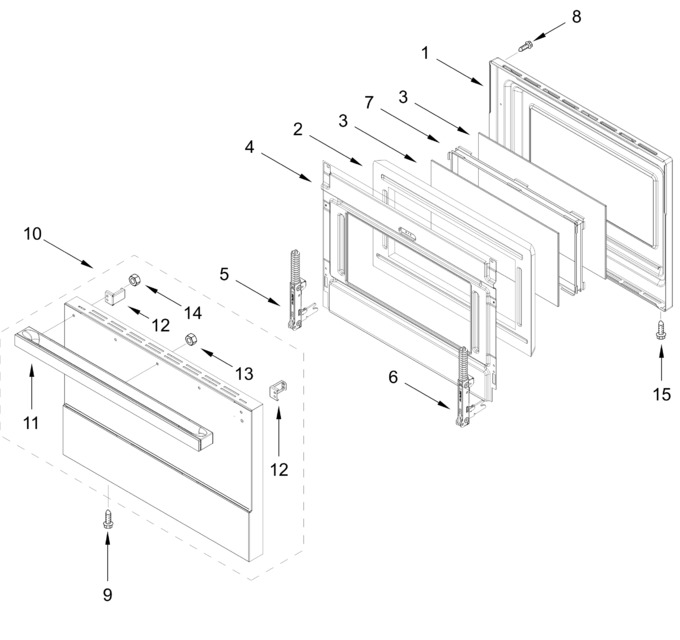

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11318831		Liner, Door   (Replaces: W11036771)			Immediately	$ 430.01
2	W11688537		Insulation, Door (30 In)   (Replaces: W11413190)				$ 125.80
3	W11318823		Glass, Inner   (Replaces: W11184409)				$ 175.72
4	W11318344		Retainer, Glass   (Replaces: W11194821)			Immediately	$ 184.62
5	W11568941		Hinge, Door (left)   (Replaces: W11096978)			Immediately	$ 115.01
6	W11568813		Hinge, Door (right)   (Replaces: W11096977)			Immediately	$ 84.80
7	WPW10272594		Frame, Glass   (Replaces: W10272594)			Immediately	$ 197.39
8	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 14.77
9	W10162096		Screw				$ 21.90
10	W11315556		Assembly, Outer Door Glass (includes Handle)   (Replaces: W10870221)				$ 2,435.98
11	W11620698		Handle, Door   (Replaces: W11411876)		Appelez-nous	-
12	W11317894		Bracket, Handle   (Replaces: W11194816)		Appelez-nous	-
13	W11198435		Nut		Appelez-nous	-
14	999299		Nut		Appelez-nous	-
15	W11193480		Screw   (Replaces: W10607120)				$ 14.72
