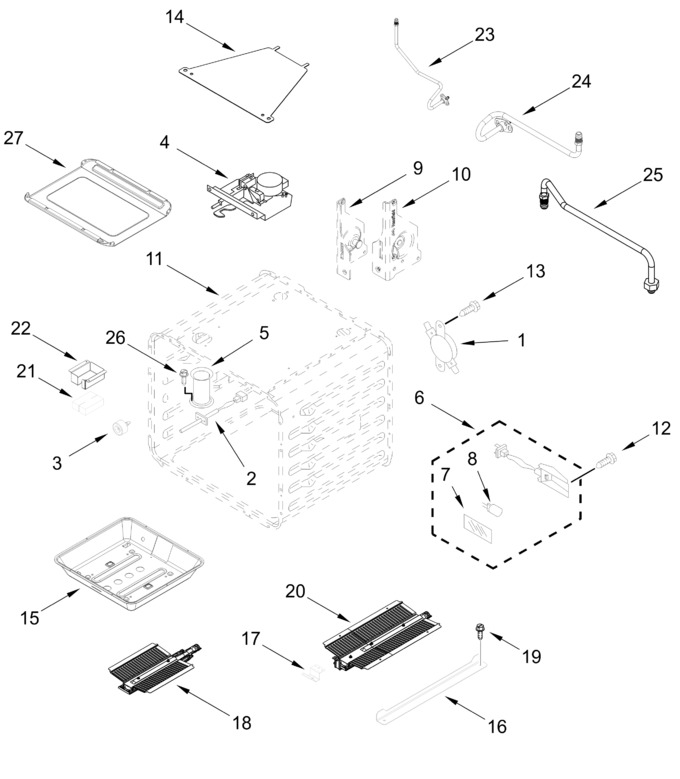

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4450249 | Thermostat (tod) (Replaces: 4450249) |
|
Immediately | $ 211.50 | ||||
| 2 | W10859573 | Probe, Sensor (Replaces: W10622170) |
|
Immediately | $ 133.83 | ||||
| 3 | WPW10351278 | Bumper And Screw (Replaces: W10351278) |
|
$ 11.01 | |||||
| 4 | W11029221 | Latch, Motorized (Replaces: W10830016) |
|
Immediately | $ 327.65 | ||||
| 5 | W10145743 | Tube, Vent |
|
- | |||||
| 6 | W11233684 | Oven Light Assembly (Replaces: W11223932) |
|
$ 111.33 | |||||
| 7 | W10169756 | Lens, Light |
|
$ 42.19 | |||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 47.38 | ||||
| 9 | ARI8F73C283CB1A0CC3E053DB4C6CDD3B07 | Receiver, Hinge (not Serviced) |
|
- | |||||
| 10 | ARI8F73C283CB1A0CC3E053DB4C6CDD3B07 | Receiver, Hinge (not Serviced) |
|
- | |||||
| 11 | ARID977495C9905E1411E0312A526DED125 | Liner, Oven (not Serviced) |
|
- | |||||
| 12 | 4449748 | Screw |
|
$ 14.23 | |||||
| 13 | 7101P42660 | Screw |
|
- | |||||
| 14 | W10160858 | Cover, Latch |
|
$ 76.94 | |||||
| 15 | WPW10145744 | Support, Bake Pan (Replaces: W10145744) |
|
$ 214.15 | |||||
| 16 | W10317437 | Bracket, Broil Standoff |
|
- | |||||
| 17 | W10308040 | Bracket, Bake Burner |
|
- | |||||
| 18 | W11643161 | Burner, Bake (Replaces: W10878504) |
|
Immediately | $ 185.14 | ||||
| 19 | 7101P43460 | Screw |
|
- | |||||
| 20 | W11661180 | Burner, Broil (Replaces: W10311335) |
|
$ 175.93 | |||||
| 21 | W11688851 | Insulation, Broil Cover (Replaces: W10311009) |
|
- | |||||
| 22 | W10310985 | Cover, Broil |
|
- | |||||
| 23 | W11355244 | Tube, Broil (Replaces: W11109238) |
|
$ 185.59 | |||||
| 24 | W11355919 | Tube, Bake (Replaces: W11106980) |
|
Immediately | $ 180.63 | ||||
| 25 | W11356251 | Tube, Gas (Replaces: W11107279) |
|
$ 183.67 | |||||
| 26 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 27 | W11661576 | Pan, Oven Bottom (Replaces: W10496809) |
|
Immediately | $ 173.11 | ||||
| W11688743 | Insulation, Wrap (Replaces: W10282811) |
|
- | ||||||
| W11688721 | Insulation, Back (Replaces: W10299351) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 8.36 | |||||
| W11688536 | Insulation, Bottom (Replaces: W10299356) |
|
- |
