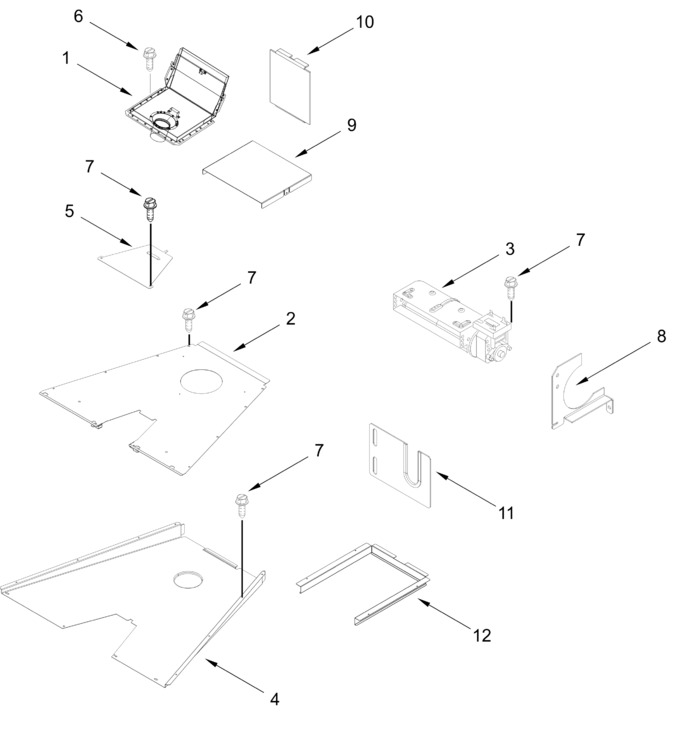

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Burner Box Parts
Chassis Parts
Cooktop And Burner Parts
Internal Oven Parts
Optional Parts (not Included)
Oven Door Parts
Oven Parts
Venting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10340579 | Vent, Chimney Box (30 In / 36 In) |
|
- | |||||
| 2 | W11105221 | Vent, Cooling Top (30 In) |
|
- | |||||
| 3 | W11248652 | Blower (Replaces: W11200129) |
|
Immediately | $ 241.54 | ||||
| 4 | W11091676 | Vent, Cooling Bottom (30 In) |
|
- | |||||
| 5 | W11320405 | Plate, Cooling Latch (Replaces: W11109518) |
|
- | |||||
| 6 | WP3400805 | Screw (zinc) (Replaces: 3400805) |
|
$ 7.55 | |||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11047754 | Bracket, Blower Mount |
|
- | |||||
| 9 | W10246086 | Retainer, Insulation |
|
- | |||||
| 10 | W10246087 | Insulation, Chimney |
|
- | |||||
| 11 | W11320407 | Cover, Channel (Replaces: W11106956) |
|
- | |||||
| 12 | W10145363 | Duct, Primary Air (30 In) |
|
- |
