SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts

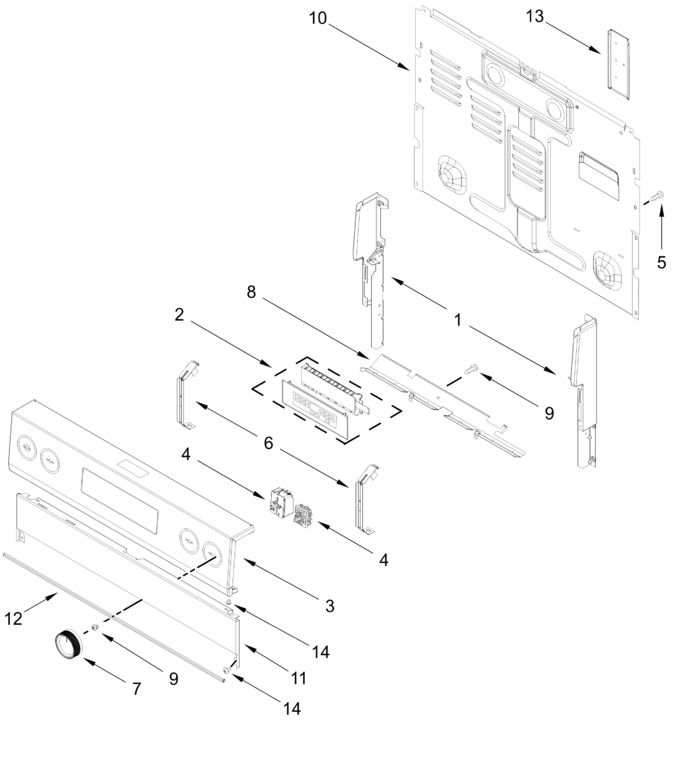

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11728387		Console, Endcap (stainless, Left)   (Replaces: W11625424)				$ 116.19
2	W11809827		Electronic, Control   (Replaces: W11790981)				$ 405.10
3	W11813669		Console (stainless)   (Replaces: W11787747)		Appelez-nous	-
4	W10857622		Switch, Infinite   (Replaces: W10437092)			Immediately	$ 211.69
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	W11728256		Bracket, Control   (Replaces: W11371599)		Appelez-nous	-
7	W11809820		Knob (stainless)   (Replaces: W11787503)		Appelez-nous	-
8	W11747326		Shield, Heat   (Replaces: W11736649)		Appelez-nous	-
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	W11729935		Cover, Upper Rear   (Replaces: W11392241)			Immediately	$ 132.02
11	W11728385		Lower Panel (stainless)   (Replaces: W11625403)		Appelez-nous	-
12	W11728258		Gasket, Lower Panel   (Replaces: W11643797)				$ 58.00
13	W11747327		Cover, Rear Flue   (Replaces: W11736681)		Appelez-nous	-
14	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
	W10911303		Switch, Infinite   (Replaces: W10578768)			Immediately	$ 104.64
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11728386		Console, Endcap (stainless, Right)   (Replaces: W11625421)			Immediately	$ 116.19
	ARI8BA1041AC6AFBF0397E9F97260C1AB0A		(right Rear, Left Rear)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
