SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts

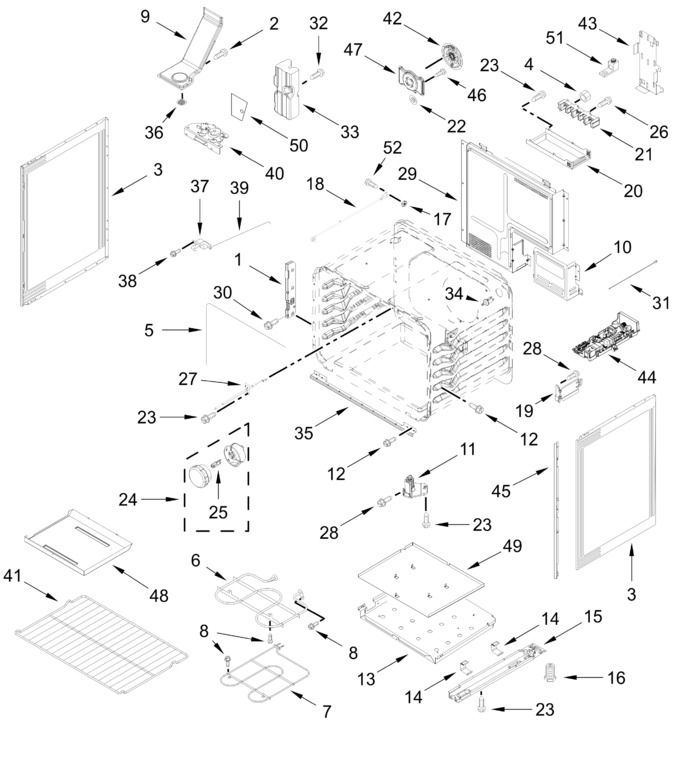

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
2	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
3	W11730303		Panel, Side (black)   (Replaces: W11445467)			Immediately	$ 178.50
4	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 8.19
5	W11542153		Seal, Door   (Replaces: W11491751)			Immediately	$ 50.20
6	W10856603		Element, Broil   (Replaces: W10308476)			Immediately	$ 154.62
7	WP9755770		Element, Bake   (Replaces: 9755770)			Immediately	$ 117.66
8	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 8.44
9	W11726807		Tube, Vent   (Replaces: W11621245)				$ 77.19
10	W11729938		Corner, Cover   (Replaces: W11596201)				$ 50.47
11	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 32.59
12	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
13	W10134121		Tray, Insulation				$ 44.75
14	W10137382		Clip, Panel			Immediately	$ 48.42
15	W11818353		Assembly, Base Rail (left)   (Replaces: W10390008)				$ 62.66
16	WPW10058460		Foot, Leveling (rear)   (Replaces: W10058460)			Immediately	$ 8.24
17	7103P02760		Nut		Appelez-nous	-
18	W11226497		Cord, Power   (Replaces: W10624592)			Immediately	$ 72.99
19	W10404688		Clip, Oven Support				$ 17.69
20	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
21	W11736123		Block, Terminal (without Ground Strap)   (Replaces: W11750818)				$ 16.13
22	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
23	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
24	W11707255		Light Assembly   (Replaces: W11634772)			Immediately	$ 40.75
25	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 27.71
26	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
27	W11730224		Sensor   (Replaces: W11633068)			Immediately	$ 48.92
28	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
29	W11747641		Side, Cover   (Replaces: W11633166)		Appelez-nous	-
30	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
31	9757239		Rod, Door Switch				$ 96.37
32	W11135756		Screw   (Replaces: W11034869)				$ 14.73
33	W11135752		Counterweight   (Replaces: W10910404)			Immediately	$ 153.79
34	W11620712		Switch, Door   (Replaces: W11511828)				$ 46.31
35	W11464547		Bracket, Front Frame				$ 45.89
36	W11268772		Screen, Vent   (Replaces: W11092984)			Immediately	$ 218.56
37	WP9761013		Front Door Latch Assembly   (Replaces: 9761013)				$ 256.36
38	W11169708		Screw   (Replaces: 3196560)				$ 13.36
39	W10078380		Rod, Latch				$ 94.91
40	WPW10107820		Rear Door Latch Assembly   (Replaces: W10107820)				$ 309.55
41	W11520287		Rack, Oven   (Replaces: W11173792)			Immediately	$ 46.84
42	W11730307		Fan, Convection (includes Element)   (Replaces: W11635909)				$ 243.51
43	W11729919		Bracket, Acu   (Replaces: W11365827)				$ 77.10
44	W11784010		Control, Appliance   (Replaces: W11761234)				$ 889.22
45	W11594227		Barrier Rail, Rubber (left, Right)   (Replaces: W11510560)			Immediately	$ 76.68
46	W10516115		Screw				$ 14.52
47	W11771008		Convect Fan, Cover   (Replaces: W11373156)		Appelez-nous	-
48	W10183712		Tray, Hidden Bake				$ 243.95
49	W10134125		Shield, Heat				$ 159.37
50	W10646923		Card, Insulator				$ 19.57
51	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87
52	W11244557		Screw   (Replaces: 3196173)				$ 14.29
	W11729936		Insulation, Back   (Replaces: W11407378)				$ 123.47
	W11818353		Assembly, Base Rail (right)   (Replaces: W10390007)				$ 62.66
	W11161831		Insulation, Wrap   (Replaces: W10774939)			Immediately	$ 116.41
	W11729932		Insulation, Flue   (Replaces: W11404469)				$ 32.77
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
