01 - Cover Sheet

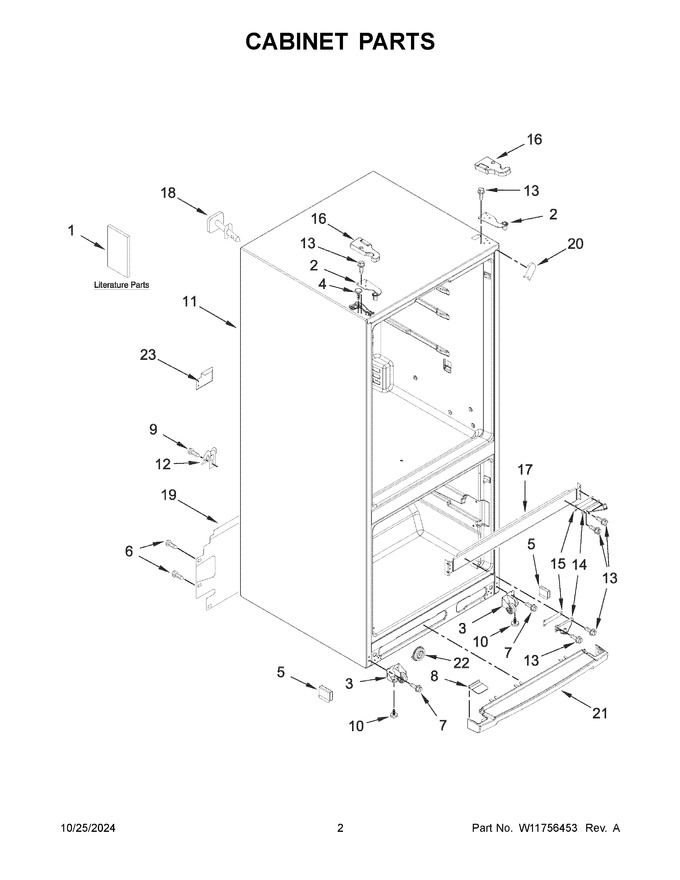

02 - Cabinet Parts
03 - Liner Parts
04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11647958 | Energy Guide |
|
- | |||||
| 2 | W10546298 | Hinge, Top (left Hand) |
|
$ 66.81 | |||||
| 3 | WPW10359256 | Roller, Front (left Hand) (Replaces: W10359256) |
|
Immediately | $ 51.83 | ||||
| 4 | WPW10520307 | Plug, Hole (grey) (Replaces: W10520307) |
|
Immediately | $ 7.19 | ||||
| 5 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.98 | |||||
| 6 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.79 | ||||
| 7 | 3400524 | Screw (Replaces: W10142287) |
|
$ 12.65 | |||||
| 8 | WPW10353932 | Cover, Toe Grille (grey) (Replaces: W10353932) |
|
$ 81.43 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 10 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 11 | ARI0E0595B5C30868CDEDF430A9DC24D80C | Cabinet (not A Serviceable Part) |
|
- | |||||
| 12 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 21.07 | |||||
| 13 | W10336489 | Screw |
|
$ 14.33 | |||||
| 14 | W10770878 | Hinge, Center (left Hand) |
|
Immediately | $ 78.38 | ||||
| 15 | WPW10450363 | Shim, Center Hinge (Replaces: W10450363) |
|
Immediately | $ 24.13 | ||||
| 16 | W10465768 | Cover, Hinge (left Hand (grey)) |
|
$ 19.55 | |||||
| 17 | ARIAE303BB782E87BFFA93CA33623AF4979 | Rail, Center (not Serviced) |
|
- | |||||
| 18 | ARIB7DDFA80728E46F35EDDE3EECCB1BBEF | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 19 | W11700600 | Cover, Unit (Replaces: W11407731) |
|
Immediately | $ 59.82 | ||||
| 20 | W11219642 | Corner Filler (grey) (Replaces: W11189126) |
|
Immediately | $ 12.24 | ||||
| 21 | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 103.32 | ||||
| 22 | W10331226 | Drum, Toe Grille |
|
$ 45.16 | |||||
| 23 | W11528668 | Access Cover, Valve (Replaces: W11458717) |
|
- | |||||
| 14A | W11417064 | Hinge, Center (right Hand) (Replaces: W10770877) |
|
Immediately | $ 60.73 | ||||
| 16A | W10465767 | Cover, Hinge (right Hand (grey)) |
|
Immediately | $ 20.44 | ||||
| 1A | W11512269 | Use And Care Guide |
|
- | |||||
| 2A | W11573371 | Hinge, Top (right Hand) (Replaces: W10546299) |
|
Immediately | $ 23.69 | ||||
| 3A | WPW10359255 | Roller, Front (right Hand) (Replaces: W10359255) |
|
Immediately | $ 95.85 |
