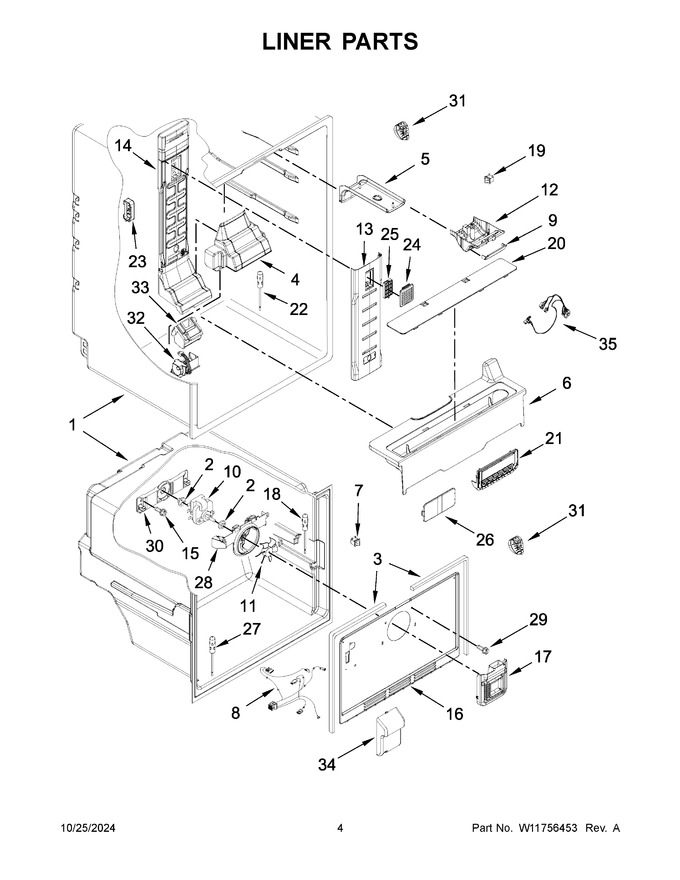

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI8B23AD81B97D70C7853D17BAA6EEAA2D | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 43.97 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10468762) |
|
Immediately | $ 91.13 | ||||
| 4 | WPW10314204 | Housing, Damper (Replaces: W10314204) |
|
$ 97.20 | |||||
| 5 | W11516524 | Housing, Light |
|
$ 125.83 | |||||
| 6 | W10798439 | Container, Water Reservoir |
|
$ 171.35 | |||||
| 7 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 37.23 | ||||
| 8 | W11609466 | Assembly, Freezer Wire (Replaces: W11314510) |
|
Immediately | $ 78.63 | ||||
| 9 | W10360550 | Cover, Control Housing |
|
$ 72.64 | |||||
| 10 | W11818487 | Motor, Fan (Replaces: W10464673) |
|
$ 113.70 | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | WPW10435634 | Control Housing (Replaces: W10435634) |
|
Immediately | $ 92.95 | ||||
| 13 | WPW10356895 | Tower, Multiflow Air (Replaces: W10356895) |
|
$ 153.80 | |||||
| 14 | W11508229 | Assembly, Multiflow |
|
$ 66.86 | |||||
| 15 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 9.84 | |||||
| 16 | W10300900 | Cover, Evaporator |
|
$ 230.63 | |||||
| 17 | W11227949 | Tower, Freezer (Replaces: W10317182) |
|
$ 107.22 | |||||
| 18 | WPW10384183 | Thermistor (for Evaporator) (Replaces: W10384183) |
|
Immediately | $ 112.83 | ||||
| 19 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 37.30 | ||||
| 20 | W10413160 | Cover, Water Reservoir |
|
$ 107.75 | |||||
| 21 | W11655740 | Assembly, Sparsh Ui (Replaces: W11593429) |
|
Immediately | $ 260.04 | ||||
| 22 | W11724692 | Thermistor, Refrigerator (Replaces: W10438639) |
|
Immediately | $ 32.00 | ||||
| 23 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 84.17 | ||||
| 24 | WPW10330850 | Grille, Air Filter Bottom (Replaces: W10330850) |
|
$ 35.77 | |||||
| 25 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 26 | W10336009 | Cup, Screw |
|
$ 73.71 | |||||
| 27 | W11724692 | Thermistor (Replaces: W10438761) |
|
Immediately | $ 32.00 | ||||
| 28 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 30.92 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 30 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 71.85 | ||||
| 31 | W11602886 | Light Module, Led (Replaces: W11468934) |
|
$ 42.63 | |||||
| 32 | W11808478 | Damper, Electronic Control (Replaces: W10745484) |
|
Immediately | $ 132.68 | ||||
| 33 | W11133099 | Cover, Damper Housing (Replaces: W10474774) |
|
Immediately | $ 101.35 | ||||
| 34 | W11562261 | Cover, Water Tube (Replaces: W11341625) |
|
$ 7.52 | |||||
| 35 | W11618501 | Assembly, Refrigerator Light Wire (Replaces: W11432779) |
|
Immediately | $ 74.74 |
