Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)

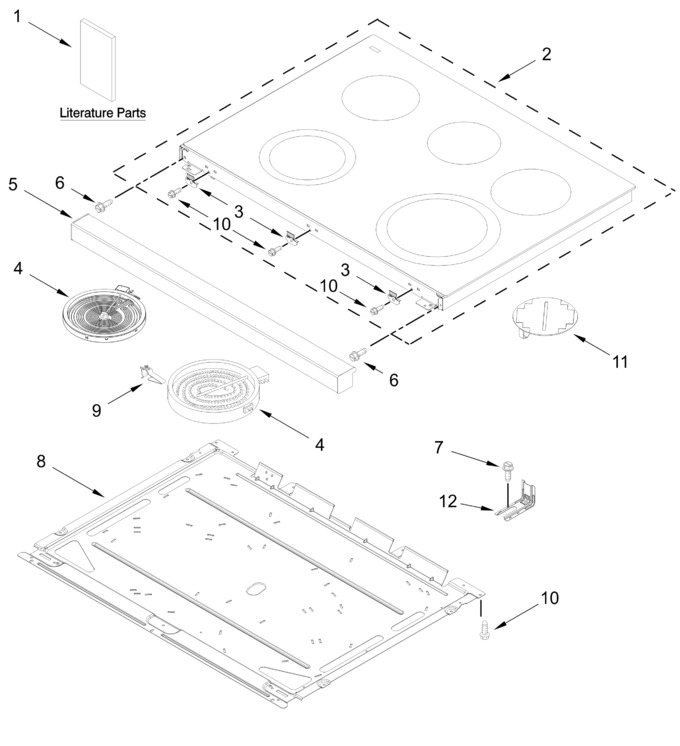

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11796132		Glass Outer Door   (Replaces: W11781429)				$ 1,022.57
3	W11730543		Bracket, Cooktop   (Replaces: W11593284)			Immediately	$ 11.52
4	W11747448		Element (dual, 3000w)   (Replaces: W11726010)				$ 214.25
5	W11730522		Bullnose (black)   (Replaces: W11353384)				$ 395.84
6	W11684512		Screw   (Replaces: 3400080)				$ 14.81
7	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
8	W11728329		Pan, Radiant Element   (Replaces: W11640572)			Immediately	$ 143.49
9	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	W11706247		Element, Warm Zone   (Replaces: W11668631)			Immediately	$ 133.94
12	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	W11747449		Element (single, 1200w)   (Replaces: W11724296)				$ 165.20
	W11639163		Tech Sheet		Appelez-nous	-
	W11737120		Harness, Cooktop   (Replaces: W11706379)				$ 151.32
	W11768719		Element (3000w)   (Replaces: W11735737)				$ 184.49
	W11638798		Quick Start Guide		Appelez-nous	-
	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 27.02
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	3196896		Clip, Wire		Appelez-nous	-
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-
	ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12		(center Rear)		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	W11779864		Owners Manual		Appelez-nous	-
	W11730300		Harness, Main   (Replaces: W11706940)			Immediately	$ 348.46
