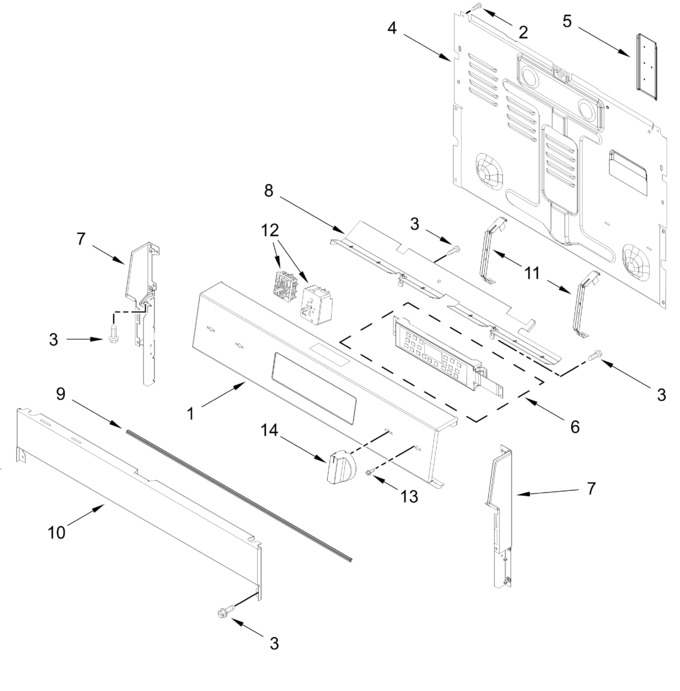

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11730494 | Console (black) (Replaces: W11299259) |
|
- | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 4 | W11726751 | Cover, Upper Rear (Replaces: W11393668) |
|
$ 131.99 | |||||
| 5 | W11747327 | Cover, Rear Flue (Replaces: W11736681) |
|
- | |||||
| 6 | W11757145 | User, Interface (Replaces: W11755750) |
|
Immediately | $ 419.29 | ||||
| 7 | W11730342 | Endcap (black, Left) (Replaces: W11327041) |
|
$ 117.41 | |||||
| 8 | W11747326 | Shield, Heat (Replaces: W11736649) |
|
- | |||||
| 9 | W11728258 | Gasket, Lower Panel (Replaces: W11643797) |
|
$ 58.00 | |||||
| 10 | W11728260 | Lower Panel (black) (Replaces: W11625413) |
|
$ 122.82 | |||||
| 11 | W11713812 | Bracket, Control (Replaces: W11290750) |
|
$ 30.37 | |||||
| 12 | W10857622 | Switch, Infinite (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 13 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 14 | W11730521 | Knob (black) (Replaces: W11621687) |
|
$ 41.17 | |||||
| W11730343 | Endcap (black, Right) (Replaces: W11327043) |
|
$ 117.41 | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| W10911303 | Switch, Infinite (Replaces: W10578768) |
|
Immediately | $ 104.64 |
