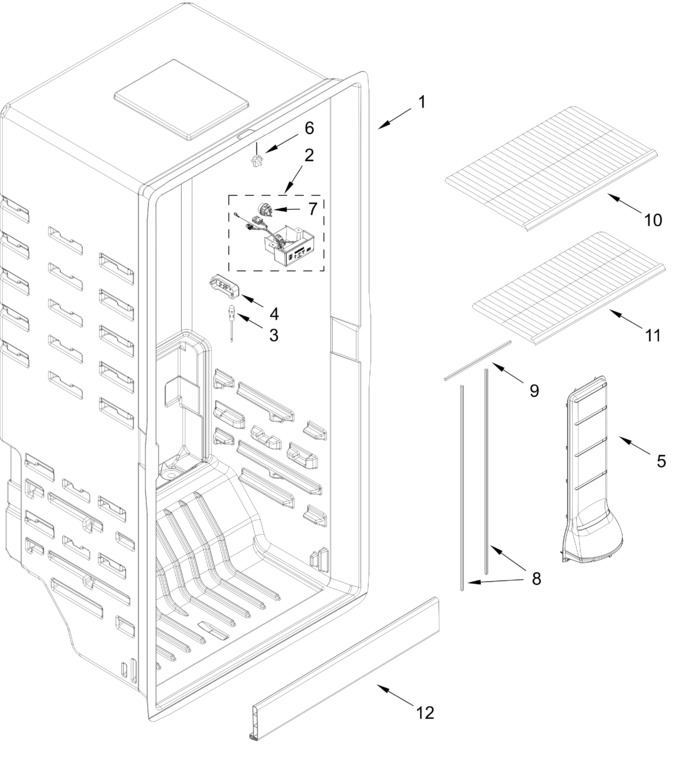

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI1BA464D72C84DA7297AB1B09D16F5BB3 | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11648347 | Control Assembly (Replaces: W11555885) |
|
$ 218.63 | |||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 31.23 | |||||
| 5 | W10574585 | Air Tower |
|
- | |||||
| 6 | W11727836 | Switch, Light (Replaces: W11514900) |
|
Immediately | $ 24.73 | ||||
| 7 | W11502762 | Module, Led (Replaces: W11254095) |
|
$ 35.70 | |||||
| 8 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574563) |
|
$ 8.75 | |||||
| 9 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 8.75 | |||||
| 10 | W10836976 | Wire Shelf, Deep (Replaces: W10569280) |
|
Immediately | $ 145.00 | ||||
| 11 | W10838567 | Wire Shelf, Shallow (Replaces: W10569281) |
|
Immediately | $ 79.65 | ||||
| 12 | W10581588 | Trim, Door |
|
$ 89.81 |
