SELECT A DIAGRAM
Cabinet Parts

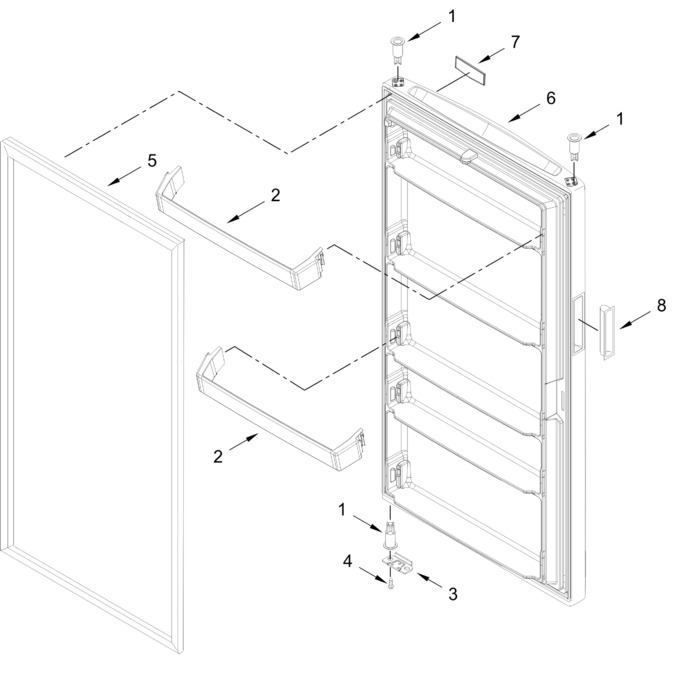

Door Parts
Liner Parts
Optional Parts (not Included)
Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 2 | W10737497 | Rail, Door Shelf |
|
$ 96.74 | |||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 26.32 | |||||
| 4 | 7101P35660 | Screw |
|
- | |||||
| 5 | W10850441 | Gasket, Door (white) (Replaces: W10574473) |
|
$ 415.56 | |||||
| 6 | W10746780 | Door Assembly (white, Includes Handle Cup) (Replaces: W10673692) |
|
$ 946.56 | |||||
| 7 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 8 | W10352523 | Handle, Cup (white) |
|
$ 25.20 |
