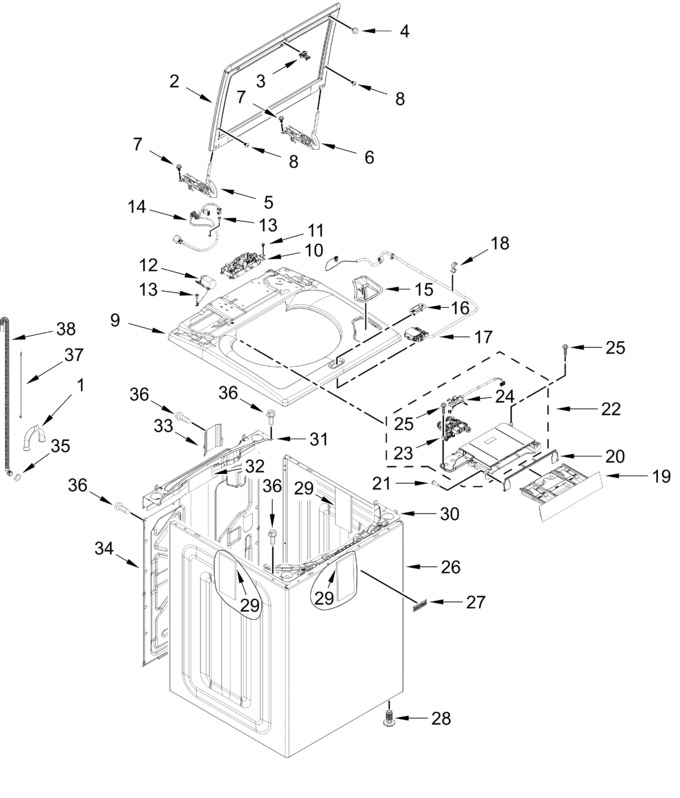

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Basket And Tub Parts
Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 2 | W11797450 | Lid Assembly (glass, Dark Grey) (Replaces: W11710910) |
|
$ 286.04 | |||||
| 3 | W11789818 | Strike Assembly (Replaces: W11676106) |
|
$ 27.12 | |||||
| 4 | W11398707 | Bumper, Lid (Replaces: W10631074) |
|
Immediately | $ 23.30 | ||||
| 5 | W11789527 | Hinge, Lid (left) (Replaces: W11701943) |
|
Immediately | $ 87.91 | ||||
| 6 | W11789526 | Hinge, Lid (right) (Replaces: W11701944) |
|
Immediately | $ 85.32 | ||||
| 7 | WP489128 | Screw (Replaces: W10142728) |
|
$ 11.40 | |||||
| 8 | W11679612 | Screw (Replaces: W11183686) |
|
$ 14.99 | |||||
| 9 | W11423769 | Top (white) (Replaces: W11126896) |
|
$ 385.19 | |||||
| 10 | W11834065 | Machine And Motor Control Unit (Replaces: W11796147) |
|
Immediately | $ 387.57 | ||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 12 | W11638178 | Line Filter (Replaces: W11296733) |
|
$ 86.72 | |||||
| 13 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 14 | W11551294 | Power Cord (Replaces: W11112935) |
|
Immediately | $ 41.51 | ||||
| 15 | W11175757 | Bleach Dispenser (white) |
|
$ 30.24 | |||||
| 16 | W11789528 | Bezel, Lid Lock (white) (Replaces: W11468804) |
|
$ 25.31 | |||||
| 17 | W11670519 | Lid Lock Latch Assembly (Replaces: W11368616) |
|
Immediately | $ 61.08 | ||||
| 18 | W11789525 | Clip, Harness (Replaces: W11655398) |
|
- | |||||
| 19 | W11797449 | Dispenser Drawer (white) (Replaces: W11750081) |
|
- | |||||
| 20 | W10601845 | Dispenser Bezel (white) (Replaces: W10601841) |
|
$ 42.59 | |||||
| 21 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 22 | W11627513 | Dispenser Housing & Inlet Valve (Replaces: W11538050) |
|
$ 309.27 | |||||
| 23 | W11595805 | Valve, Water Inlet (Replaces: W11528767) |
|
Immediately | $ 175.68 | ||||
| 24 | W11524851 | Harness, Water Inlet Valve |
|
$ 68.16 | |||||
| 25 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 26 | W10676680 | Cabinet (white) |
|
$ 406.86 | |||||
| 27 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 28 | W11213957 | Foot Leveling Assembly (Replaces: W11179235) |
|
Immediately | $ 14.24 | ||||
| 29 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 23.38 | ||||
| 30 | W11381327 | Channel, Top Front |
|
Immediately | $ 78.50 | ||||
| 31 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 103.88 | |||||
| 32 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 8.38 | ||||
| 33 | W10676061 | Cover, Harness |
|
$ 36.77 | |||||
| 34 | W11417171 | Panel, Rear |
|
$ 277.67 | |||||
| 35 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 36 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 37 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 38 | W11764699 | Outer Drain Hose (Replaces: W11703202) |
|
$ 40.99 |
