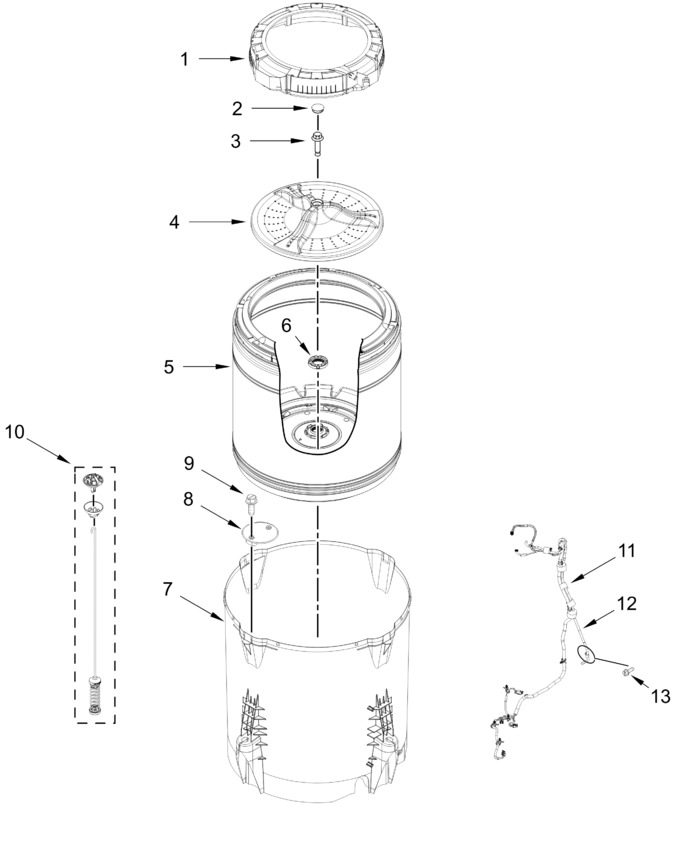

Basket And Tub Parts
Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11590590 | Tub Ring (Replaces: W11094304) |
|
Immediately | $ 148.08 | ||||
| 2 | W11050804 | Cap, Impeller (Replaces: W10609549) |
|
Immediately | $ 8.18 | ||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 9.37 | ||||
| 4 | W10902814 | Impeller (washplate) (Replaces: W10834917) |
|
Immediately | $ 136.03 | ||||
| 5 | W11683010 | Basket |
|
$ 347.52 | |||||
| 6 | W11551646 | Basket, Lock Nut (Replaces: W11183985) |
|
Immediately | $ 14.22 | ||||
| 7 | W11219115 | Tub |
|
Immediately | $ 387.09 | ||||
| 8 | W11568797 | Drain Pump Filter (Replaces: W11089264) |
|
Immediately | $ 28.13 | ||||
| 9 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 10 | W11400156 | Damper Assembly, Tub Suspension (set Of 4, Includes Suspension Bushings And Suspension Balls) (Replaces: W11187091) |
|
Immediately | $ 140.98 | ||||
| 11 | W11806068 | Harness, Main (Replaces: W11789763) |
|
$ 95.46 | |||||
| 12 | W11806520 | Hose Pressure Switch (Replaces: W11773827) |
|
- | |||||
| 13 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 |
