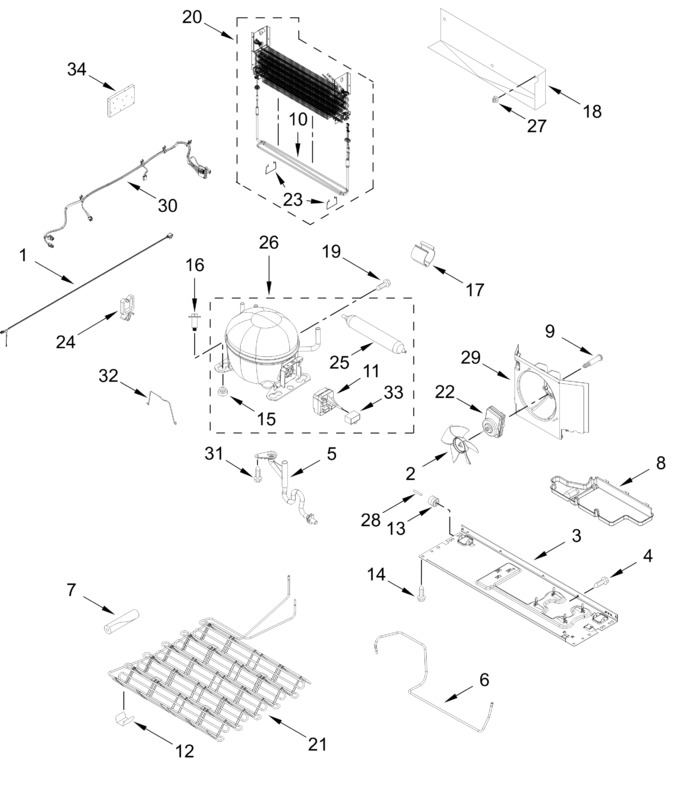

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11254160		Cord, Power   (Replaces: W10738415)			Immediately	$ 183.65
2	WP2188935		Blade, Fan   (Replaces: 2188935)			Immediately	$ 97.29
3	W11411853		Baseplate, Compressor		Appelez-nous	-
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
5	W11712703		Extension, Drain   (Replaces: W11497478)				$ 44.85
6	W11578047		Tube, Suction   (Replaces: W11323444)				$ 57.99
7	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 21.32
8	W11225840		Tray, Evaporator   (Replaces: W10660727)			Immediately	$ 158.27
9	W10829281		Screw   (Replaces: W10622701)				$ 13.28
10	W11575359		Heater, Defrost   (Replaces: W11553968)				$ 119.70
11	W11615506		Device, Combination Start (start Relay And Overload)   (Replaces: W11541370)				$ 73.64
12	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 19.38
13	12477102		Roller, Rear			Immediately	$ 7.38
14	12992101		Screw		Appelez-nous	-
15	WPW10169124		Grommet, Compressor   (Replaces: 10835903)				$ 7.55
16	W11417341		Screw				$ 14.07
17	W10281329		Clip, Drier				$ 13.73
18	W11408656		Tray, Drip				$ 45.58
19	WPW10141625		Screw   (Replaces: W10141625)				$ 22.22
20	W11598434		Evaporator And Heater Assembly   (Replaces: W11394387)				$ 335.66
21	W11411956		Condenser				$ 228.72
22	W11127829		Motor, Condenser Fan   (Replaces: W11505535)			Immediately	$ 185.05
23	W11380964		Clip, Heater				$ 18.53
24	W11233642		Clip   (Replaces: 2223913)		Appelez-nous	-
25	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 39.12
26	W11727250		Compressor   (Replaces: W11736179)			Immediately	$ 1,043.72
27	10623002		Clip, Evaporator				$ 12.11
28	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.90
29	WPW10406719		Shroud, Condenser Fan   (Replaces: W10406719)				$ 82.24
30	W11614808		Harness, Unit (includes Power Cord)   (Replaces: W11306948)			Immediately	$ 117.66
31	W10141518		Screw				$ 9.54
32	W11661170		Strap, Bale   (Replaces: W10174384)			Immediately	$ 11.87
33	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 99.49
34	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
	W11506635		Tube, Charging (1/4 In, Includes Schrader Valve)			Immediately	$ 37.03
	ARI5DD2AEE280966FBC792DC043E4E4B750		(capillary Tube To Drier)		Appelez-nous	-
	W11504415		8.5/8 Nr Ms 00			Immediately	$ 25.89
	W11504431		7/5 Nr Ms 00			Immediately	$ 27.13
	W11504445		5/4 Nr Ms 00			Immediately	$ 28.92
	W11504447		5/1.8 Nr Ms 00			Immediately	$ 43.90
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	ARI169E995E2DAC0D79856EDDCD3C362715		(suction Tube To Compressor)		Appelez-nous	-
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	ARI365422773BD6741F2B56A197441A318E		(heat Loop To Drier)		Appelez-nous	-
	ARIFE05854D4243D957FF7DF90F52C3AE38		(compressor To Condenser)		Appelez-nous	-
	W11504450		4/1.8 Nr Ms 00			Immediately	$ 46.52
	W11506620		8 Nk Al 00			Immediately	$ 32.10
	ARI7EAC8134DAB8FF5AAAE27020D6EE8424		(heat Loop To Condenser)		Appelez-nous	-
	ARI4B5A5A3E5B4FFC53324A9CF202B1EBC5		56 Grams (r600a)		Appelez-nous	-
	ARI169C38591D7F4AD8FB3D43FAEA44FC75		(charging Tube To Compressor)		Appelez-nous	-
	W11506621		6 Nk Ms 00			Immediately	$ 22.00
