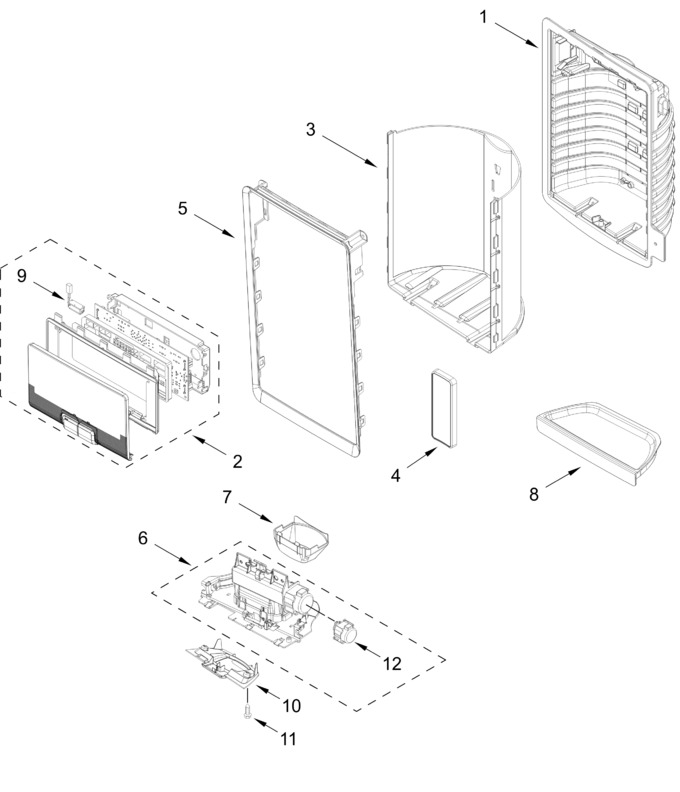

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI7BA56BA2C1ECE25D7D2B23E3FB9AE19C | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11790746 | User Interface Assembly (includes Light Feature) (Replaces: W11748616) |
|
- | |||||
| 3 | W10520869 | Wall, Dispenser False (grey) |
|
$ 121.46 | |||||
| 4 | W10436678 | Pad Assembly (stainless) |
|
- | |||||
| 5 | W10587910 | Ring, Trim (stainless) |
|
$ 133.26 | |||||
| 6 | WPW10577864 | Separator Assembly (Replaces: W10577864) |
|
Immediately | $ 157.84 | ||||
| 7 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
$ 23.94 | |||||
| 8 | W10410105 | Tray, Drip (grey) |
|
$ 104.16 | |||||
| 9 | W11290115 | Led Assembly (Replaces: W10470750) |
|
$ 84.45 | |||||
| 10 | W10549235 | Cover, Seperator |
|
$ 104.97 | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 12 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 107.60 |
