Cabinet Parts
Freezer Door Parts
Freezer Liner Parts
Optional Parts
Refrigerator Door Parts
Refrigerator Liner Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:

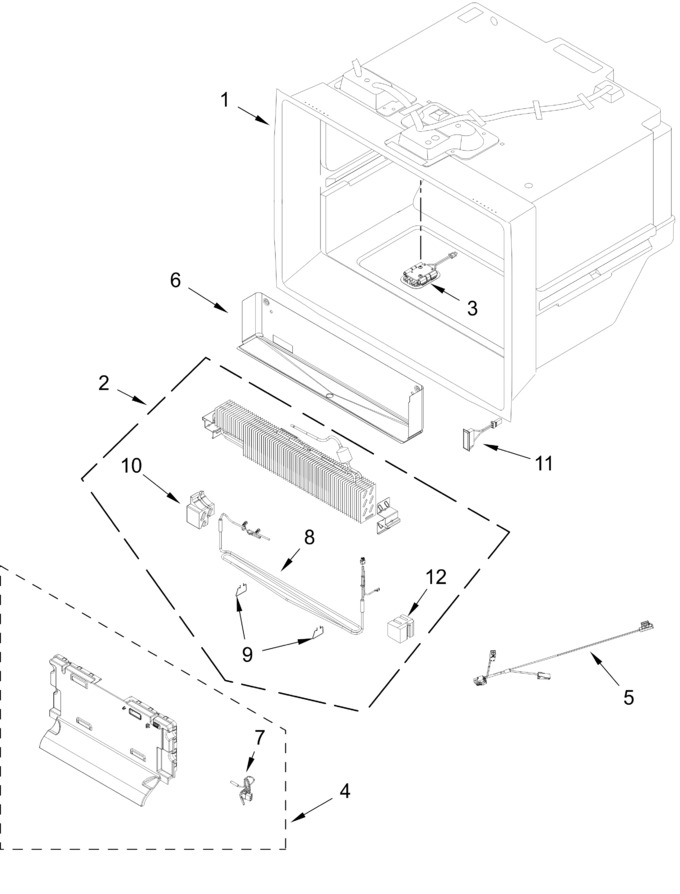

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARID4B24459AD3CE840514D8AC6D2EFEC61 | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W11786909 | Evaporator Assembly (Replaces: W11646272) |
|
- | |||||
| 3 | W11817282 | Led Light Module (Replaces: W11555160) |
|
$ 33.19 | |||||
| 4 | W11795508 | Evaporator Cover Assembly (Replaces: W11609201) |
|
$ 226.70 | |||||
| 5 | W11816125 | Evaporator Wire Assembly (Replaces: W11559742) |
|
- | |||||
| 6 | W11807516 | Heat Shield Assembly (Replaces: W11569938) |
|
- | |||||
| 7 | W11787130 | Wire Jumper Assembly (Replaces: W11627842) |
|
- | |||||
| 8 | W11798506 | Defrost Heater (Replaces: W11560604) |
|
- | |||||
| 9 | W11798508 | Defrost Heater Clip (Replaces: W11365795) |
|
- | |||||
| 10 | W11798510 | Air Dam (left Hand) (Replaces: W11563438) |
|
- | |||||
| 11 | W11785649 | Reed Switch (Replaces: W11548358) |
|
$ 49.08 | |||||
| 12 | W11798511 | Air Dam (right Hand) (Replaces: W11563437) |
|
- |
