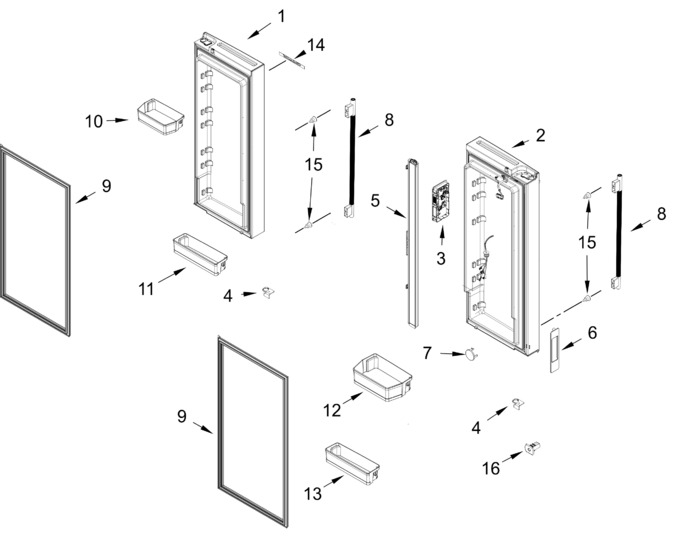

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11796979 | Right Door Assembly (stainless) |
|
$ 618.26 | |||||
| 2 | W11796985 | Left Door Assembly (stainless) |
|
$ 651.59 | |||||
| 3 | W11791179 | Hmi Assembly (Replaces: W11550269) |
|
$ 285.71 | |||||
| 4 | W11787142 | Door Stopper Spring (Replaces: W11681260) |
|
- | |||||
| 5 | W11791250 | Mullion Assembly (Replaces: W11555782) |
|
$ 235.62 | |||||
| 6 | W11787152 | Door Duct Retainer (Replaces: W11685003) |
|
- | |||||
| 7 | W11791178 | Cover Screw (Replaces: W11589852) |
|
- | |||||
| 8 | W11759446 | Door Handle (stainless) (Replaces: W11682895) |
|
Immediately | $ 142.39 | ||||
| 9 | W11816123 | Refrigerator Door Gasket (grey) (Replaces: W11586645) |
|
$ 223.35 | |||||
| 10 | W11791181 | Gallon Bin (Replaces: W11657108) |
|
$ 58.46 | |||||
| 11 | W11791199 | Bottom Bin (right Hand) (Replaces: W11657111) |
|
- | |||||
| 12 | W11791212 | Gallon Bin (Replaces: W11657107) |
|
- | |||||
| 13 | W11791206 | Bottom Bin (Replaces: W11657113) |
|
- | |||||
| 14 | W11759445 | Badge (smoked Chrome) (Replaces: W11688412) |
|
Immediately | $ 50.32 | ||||
| 15 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 16 | W11787121 | Retainer Plug (Replaces: W11719970) |
|
- |
