Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer And Broiler Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

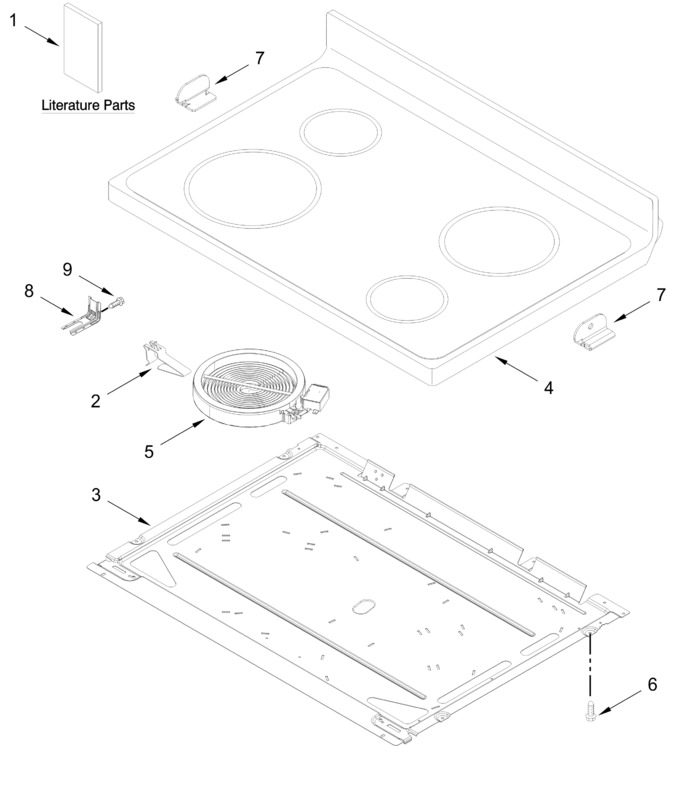

| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 3 | W11728329 | Pan, Radiant Element (Replaces: W11640572) |
|
Immediately | $ 143.49 | ||||
| 4 | W10906141 | Cooktop (black) (Replaces: W10853124) |
|
$ 233.17 | |||||
| 5 | WP8273993 | Element (1800w) (Replaces: 8273993) |
|
Immediately | $ 244.51 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 9 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| W10607642 | Bracket, Cooktop (right) |
|
- | ||||||
| W11747459 | Harness, Main (Replaces: W11648562) |
|
- | ||||||
| W11596058 | Harness, Cooktop (right) (Replaces: W11134551) |
|
Immediately | $ 34.76 | |||||
| W11432241 | Owners Manual |
|
- | ||||||
| W11393928 | Tech Sheet |
|
- | ||||||
| W11171894 | Harness, Cooktop (left) |
|
$ 228.00 | ||||||
| W11171119 | Element (1200w) (Replaces: W10248261) |
|
Immediately | $ 182.23 | |||||
| ARI1600794ED6BCA80AB6B39018C541EACB | (right Front, Left Rear) |
|
- | ||||||
| ARIB611E097F24A5B39CE73CD94D5F3EAC2 | (left Front, Right Rear) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11676947 | Quick Start Guide |
|
- |
