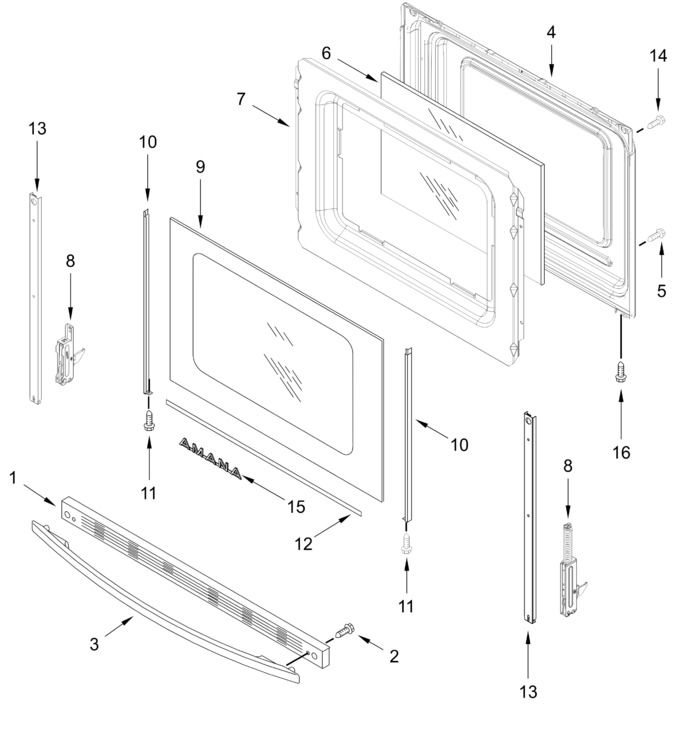

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top Vent (black) (Replaces: W10310922) |
|
Immediately | $ 175.37 | ||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 3 | WPW10323589 | Handle (black) (Replaces: W10323589) |
|
Immediately | $ 238.78 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W11367326) |
|
$ 171.68 | |||||
| 7 | W11841241 | Retainer, Insulation (Replaces: W11686928) |
|
- | |||||
| 8 | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 52.34 | ||||
| 9 | W11702168 | Outer Glass (black) (Replaces: W11687921) |
|
$ 185.87 | |||||
| 10 | W10761018 | Trim, Door Side (black, Left) (Replaces: W10746436) |
|
Immediately | $ 53.77 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 12 | W11569689 | Trim, Bottom Door (black) (Replaces: W11444043) |
|
Immediately | $ 60.08 | ||||
| 13 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 14 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 15 | W11788675 | Badge (black) (Replaces: W10846751) |
|
$ 31.10 | |||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| W10761014 | Trim, Door Side (black, Right) (Replaces: W10746435) |
|
Immediately | $ 72.96 | |||||
| WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 |
