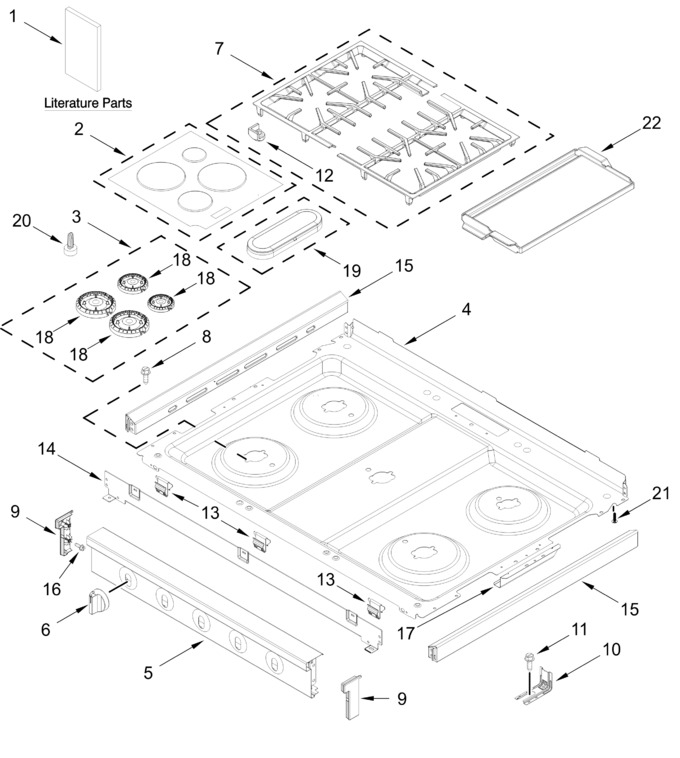

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11747335		Burner, Cap Kit (black)   (Replaces: W11636608)		Appelez-nous	-
3	W11728823		Burner Kit   (Replaces: W11635708)				$ 180.92
4	W11730423		Cooktop (black)   (Replaces: W11279786)				$ 332.69
5	W11730044		Panel, Manifold (stainless)   (Replaces: W11412239)			Immediately	$ 412.80
6	W11729101		Knob (stainless)   (Replaces: W11584000)				$ 42.98
7	W11729009		Grate Kit (black)   (Replaces: W11601432)				$ 358.47
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
9	W11729964		Panel, Manifold End Cap (stainless, Left)   (Replaces: W11351704)			Immediately	$ 84.98
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W11729100		Grate, Bumper   (Replaces: W11672010)				$ 13.71
13	W11728827		Spring, Clip   (Replaces: W11637551)		Appelez-nous	-
14	W11750421		Cooktop, Front Bracket   (Replaces: W11736687)		Appelez-nous	-
15	W11729931		Cooktop, Frame Bracket (black)   (Replaces: W11367962)				$ 171.56
16	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
17	W11728390		Bracket, Spark Module   (Replaces: W11366598)		Appelez-nous	-
18	W11747336		Spreader, Flame   (Replaces: W11352019)				$ 41.07
19	W11475513		Oval Spreader Flame, Assembly   (Replaces: W11357363)				$ 109.81
20	8016P02260		Glide, Main Top		Appelez-nous	-
21	W10530626		Screw				$ 16.76
22	W11730472		Griddle   (Replaces: W11601635)				$ 224.30
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11728268		Owner's Manual		Appelez-nous	-
	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11435630		Spreader, Flame   (Replaces: W11352018)			Immediately	$ 82.12
	W11435657		Spreader, Flame   (Replaces: W11352021)				$ 84.43
	W11729551		Tech Sheet		Appelez-nous	-
	W11781593		Harness, Main   (Replaces: W11669850)		Appelez-nous	-
	W11781582		Harness, Wire   (Replaces: W11385156)		Appelez-nous	-
	W11641830		Quick Start Guide		Appelez-nous	-
	W11729965		Panel, Manifold End Cap (stainless Right)   (Replaces: W11351707)			Immediately	$ 84.98
	W11730272		Harness, Bake   (Replaces: W11454086)			Immediately	$ 59.10
	ARIB611E097F24A5B39CE73CD94D5F3EAC2		(left Front, Right Rear)		Appelez-nous	-
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	3196896		Clip, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
