SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Manifold Parts


Optional Parts (not Included)

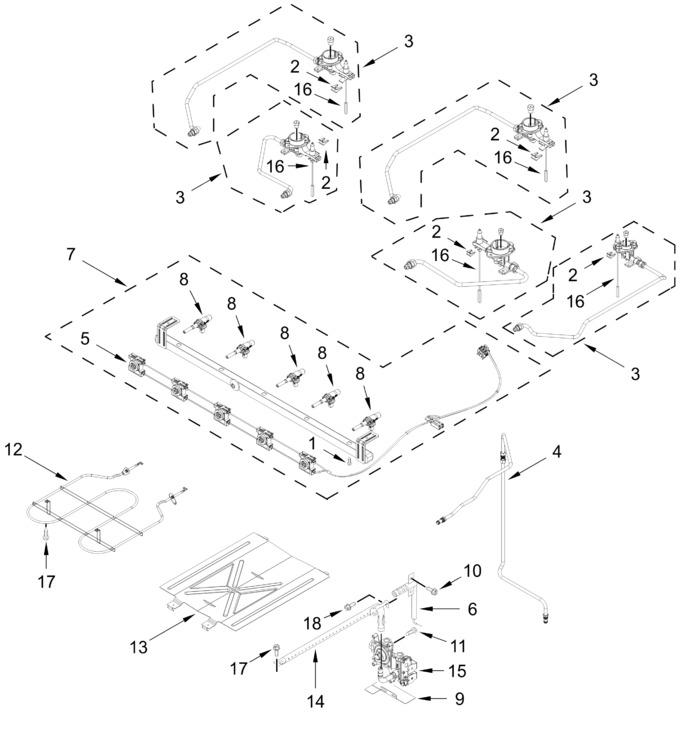

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11727164		Screw   (Replaces: W11402213)		Appelez-nous	-
2	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
3	W11728828		Orifice Assembly (12k)   (Replaces: W11300876)				$ 78.69
4	W11796249		Tubing (manifold To Regulator)   (Replaces: W11384792)				$ 131.31
5	W11727166		Harness, Igniter (includes Switches)   (Replaces: W11637977)				$ 143.34
6	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 87.74
7	W11729007		Manifold Assembly   (Replaces: W11279814)		Appelez-nous	-
8	W11747337		Valve, Gas   (Replaces: W11630470)		Appelez-nous	-
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 14.27
11	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
12	W11847084		Element, Broiler   (Replaces: W10714060)				$ 117.89
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	W10898290		Regulator   (Replaces: W10818355)			Immediately	$ 393.66
16	W11453940		Electrode   (Replaces: W11428831)				$ 64.46
17	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
18	3196265		Screw		Appelez-nous	-
	ARI5A21FEE31EB202DDA189D0EC8CA36187		(left Front, Left Rear)		Appelez-nous	-
	W11729238		Kit, Lp Conversion (orifice, Set Of 5)   (Replaces: W11370715)				$ 50.11
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	W11728388		Orifice Assembly (18k)   (Replaces: W11300879)			Immediately	$ 80.68
	W11727169		Orifice Assembly (5k)   (Replaces: W11300867)		Appelez-nous	-
	W11728578		Valve, Single   (Replaces: W11279837)		Appelez-nous	-
	W11728580		Valve, Single   (Replaces: W11279839)			Immediately	$ 94.28
	W11763416		Orifice, Lp Bake   (Replaces: W10838304)				$ 52.11
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARIB5EC423DC5AD79ADD9DCFB76CCAA7A53		(left Front, Left Rear, Center)		Appelez-nous	-
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	W11453920		Electrode   (Replaces: W11428858)				$ 64.35
	W11729008		Orifice Assembly (12k)   (Replaces: W11341430)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11728829		Orifice Assembly (10k)   (Replaces: W11300874)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI9CA4BFAE91A940FBF233DBE12DD115EE		(right Front, Center)		Appelez-nous	-
	ARI5AD74B3C8D449725567FBC40A122921E		(right Front, Right Rear)		Appelez-nous	-
	WPW10182767		Tie, Wire   (Replaces: W11402210)				$ 7.30
