SELECT A DIAGRAM

Diagram for Cabinet And Stirrer Parts
Cabinet And Stirrer Parts

Diagram for Control Panel Parts
Control Panel Parts

Diagram for Internal Microwave Parts
Internal Microwave Parts

Diagram for Internal Oven Parts
Internal Oven Parts

Diagram for Microwave Door Parts
Microwave Door Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Oven Door Parts
Oven Door Parts

Diagram for Oven Parts
Oven Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI4741983F61CAC445F12C0C1FD1B613C1 Literature Parts Appelez-nous -
2 W11795184 Control Panel Assembly (stainless)   (Replaces: W11765383) Appelez-nous -
3 W11448962 Appliance Manager   (Replaces: W11249218) In-Stock Immediately $ 325.47

4 W11602625 Screw (black)   (Replaces: W11339492) Special Order $ 14.72

5 W11598119 Blower   (Replaces: W11397930) In-Stock Immediately $ 388.25

6 W11754860 Panel, Combo Chassis Side   (Replaces: W11659057) Appelez-nous -
7 W10588732 Cover, Top Back 30 In Chassis Special Order $ 225.86

8 7101P42660 Screw Appelez-nous -
9 W10681157 Cover, Combo Blower Appelez-nous -
10 W10655463 Bracket, Blower (left) Appelez-nous -
11 W10491987 Block, Foam   (Replaces: 4451758) In-Stock Immediately $ 8.14

12 W11726569 Skin, Control Panel (stainless)   (Replaces: W11689165) Appelez-nous -
13 WP4450118 Nut   (Replaces: 4450118) Special Order $ 8.78

14 W11754858 Divider, Chassis Back   (Replaces: W11664750) Appelez-nous -
15 W11754859 Cover, Top Front 30 In Chassis   (Replaces: W11646291) Appelez-nous -
16515 Clip, Harness   (Replaces: 313438) Special Order $ 20.53

W11781379 Harness, Signal   (Replaces: W11723454) Appelez-nous -
W11229448 Harness, Communication In-Stock Immediately $ 235.39

W10655462 Bracket, Blower (right) Appelez-nous -
4448664 Clamp, Conduit Special Order $ 21.41

WP3400015 Screw, Grounding   (Replaces: 3400015) Special Order $ 7.55

W11760866 Owners Manual Appelez-nous -
W11356991 Harness, Ground Console Combo Appelez-nous -
ARI7C4B781E09F4C135E8A56A812FBF5A4D Following Parts Not Illustrated Appelez-nous -
W11731943 Harness, Main   (Replaces: W11659368) In-Stock Immediately $ 334.06

W11618058 Quick Start Guide Appelez-nous -
W11602626 Bag, Hardware   (Replaces: W11394923) Special Order $ 23.47

W11340885 Wiring Diagram Appelez-nous -
W11727826 Harness, Door Latch   (Replaces: W11264646) Special Order $ 61.80


    View Diagram in Separate Window     Print Icon   Print Part List

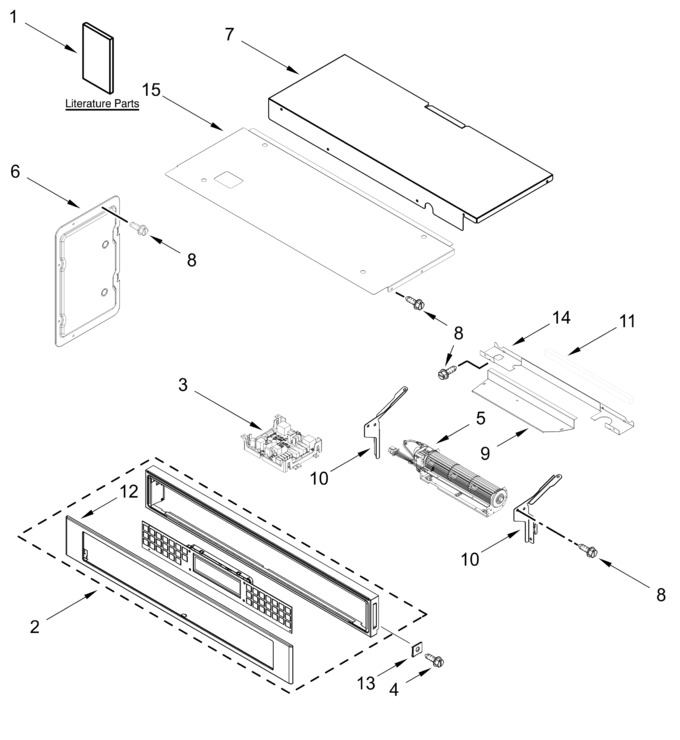

Diagram for KOEC530SPS00
