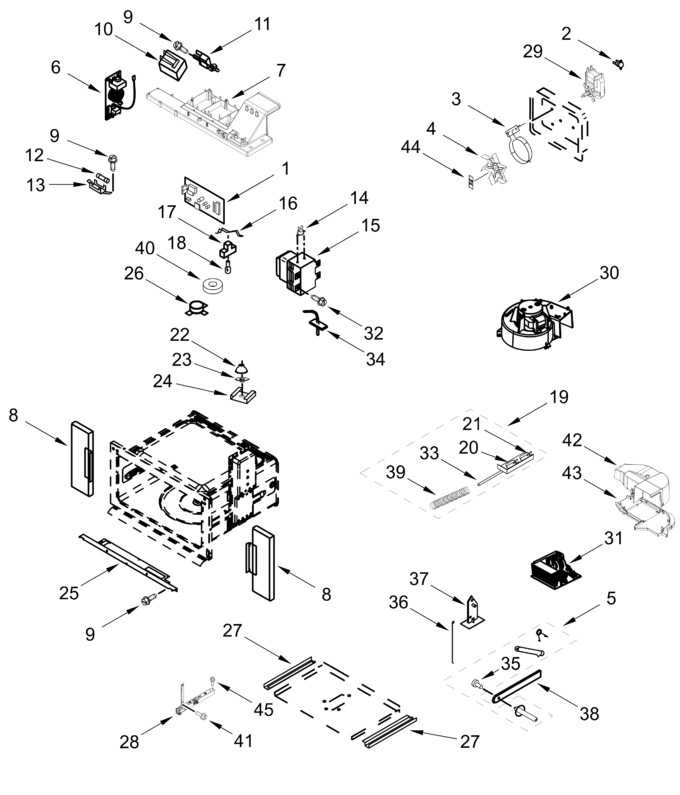

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11325786		Manager, Appliance (powermax)   (Replaces: W11289998)			Immediately	$ 293.41
2	W11607085		. Sensor, Convection   (Replaces: 423107845441)			Immediately	$ 44.42
3	WPW10493735		. Heater, Convection Element   (Replaces: 461967848711)			Immediately	$ 110.49
4	W11512064		Blade, Fan   (Replaces: W11453899)			Immediately	$ 171.35
5	WPW10128850		Sliding Arm Assembly   (Replaces: W10128850)			Immediately	$ 142.08
6	W11758693		Filter, Noise   (Replaces: W11755010)				$ 43.11
7	461967754821		. Duct, Magnetron				$ 87.16
8	W10486208		. Trim, Side (left)   (Replaces: 461967017491)				$ 79.14
9	461967825321		. Screw				$ 12.13
10	W11238401		. Transformer, Light (20v)   (Replaces: 461967848621)			Immediately	$ 360.89
11	461967842541		. Thermoactuator				$ 72.29
12	W11188752		. Fuse   (Replaces: 241908600053)			Immediately	$ 17.37
13	W10245194		Block, Fuse   (Replaces: 4375231)				$ 87.31
14	W11233913		. Thermostat, Magnetron   (Replaces: 461967846741)			Immediately	$ 156.08
15	W11578959		Magnetron   (Replaces: W11504545)			Immediately	$ 123.62
16	W10465869		Spring, Lamp			Immediately	$ 103.76
17	WPW10490593		Holder, Lamp   (Replaces: W10490593)				$ 77.82
18	W10886919		Lamp, Halogen   (Replaces: W10795595)			Immediately	$ 32.22
19	W11578578		Harness, Interlock   (Replaces: W11555168)			Immediately	$ 127.79
20	W10211972		. Switch   (Replaces: 461967848881)			Immediately	$ 52.40
21	W11214928		Holder, Switch   (Replaces: W10876593)				$ 36.06
22	423107022541		. Reflector				$ 85.90
23	W11193483		. Lens, Lamp   (Replaces: 423107720491)			Immediately	$ 104.82
24	W11440819		Clip, Spring				$ 23.00
25	W11334716		Vent, Top Microwave				$ 64.81
26	W10460457		Sensor, Humidity			Immediately	$ 132.65
27	8205707		. Support, Bottom   (Replaces: 461967008461)			Immediately	$ 68.79
28	W11732689		Hinge, Door   (Replaces: W11681073)				$ 102.84
29	W11534564		Motor, Convection Fan   (Replaces: W11233698)			Immediately	$ 105.70
30	W11344874		Cooling Fan Assembly   (Replaces: W11131760)			Immediately	$ 191.74
31	W11578579		Inverter   (Replaces: W11504539)			Immediately	$ 259.99
32	461967825971		. Screw		Appelez-nous	-
33	WPW10120235		. Rod, Push   (Replaces: 461967750464)			Immediately	$ 7.32
34	W11208292		. Sensor, Termperature   (Replaces: 241960100002)				$ 162.14
35	WPW10128850		. Bushing   (Replaces: 461967510191)			Immediately	$ 142.08
36	W11700292		. Spring, Torsion   (Replaces: 461967570351)				$ 72.30
37	W11684510		. Support   (Replaces: 461967750494)			Immediately	$ 15.52
38	W11607070		Arm, Sliding   (Replaces: W11213889)				$ 28.96
39	W11715912		. Spring, Release Rod   (Replaces: 423107570871)			Immediately	$ 8.27
40	W10769147		Sealing, Lamp			Immediately	$ 24.49
41	W11690594		. Screw (shoulder)   (Replaces: 461967825781)				$ 14.79
42	W11646907		Housing, Upper Inverter   (Replaces: W11591019)				$ 82.38
43	W11646906		Housing, Lower Inverter   (Replaces: W11591018)		Appelez-nous	-
44	W11724411		Nut, Speed   (Replaces: W10120233)			Immediately	$ 60.47
45	461967825601		. Screw		Appelez-nous	-
	461967017481		. Trim, Side (right)		Appelez-nous	-
	ARI2EB13EA73395E08F3EB3E7CF4E6B6B38		Miscellaneous Parts		Appelez-nous	-
	W11539494		Harness, Inverter				$ 43.39
	W11578580		Jumper Harness, Communication   (Replaces: W11539527)				$ 30.24
	W11546965		Harness, Fan And Turntable   (Replaces: W11454022)				$ 78.88
