Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11320407 Cover, Channel   (Replaces: W11106956) Appelez-nous -
2 W11105221 Vent, Cooling Top (30 In) Appelez-nous -
3 W11248652 Blower   (Replaces: W11200129) In-Stock Immediately $ 241.54

4 W11091676 Vent, Cooling Bottom (30 In) Appelez-nous -
5 W11320405 Plate, Cooling Latch   (Replaces: W11109518) Appelez-nous -
6 W10115855 Holder, Strain Relief Appelez-nous -
7 7101P42660 Screw Appelez-nous -
8 W11047754 Bracket, Blower Mount Appelez-nous -
9 W10145363 Duct, Primary Air (30 In) Appelez-nous -
10 W10246087 Insulation, Chimney Appelez-nous -
11 W10246086 Retainer, Insulation Appelez-nous -
12 W10340579 Vent, Chimney Box (30 In / 36 In) Appelez-nous -
13 WP3400805 Screw (zinc)   (Replaces: 3400805) Special Order $ 7.55

14 W11175143 Gasket   (Replaces: W10919715) In-Stock Immediately $ 24.62


    View Diagram in Separate Window     Print Icon   Print Part List

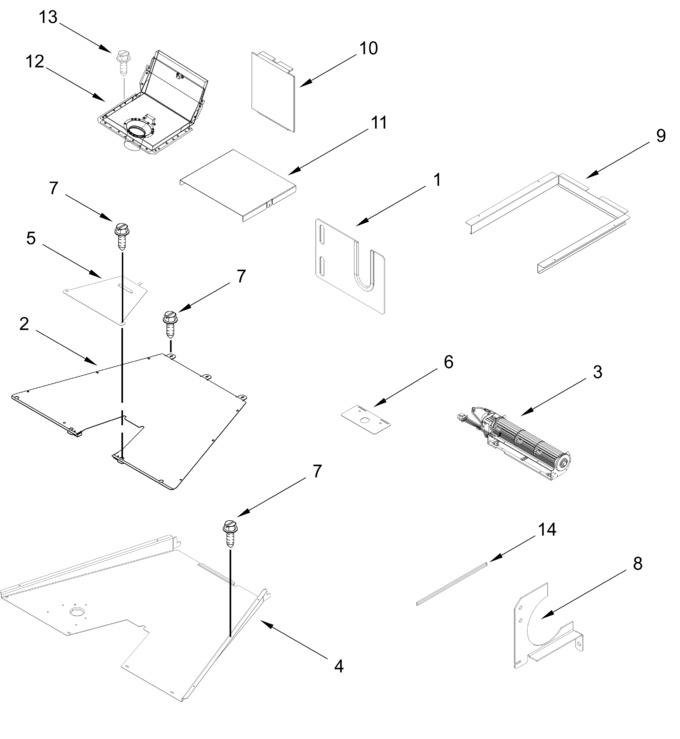

Diagram for KFGS936SSS00
