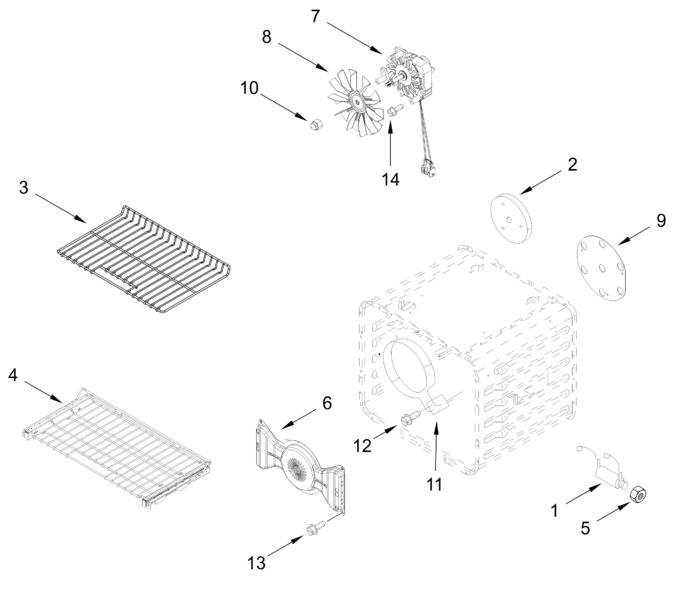

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 108.02 | ||||
| 2 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 27.10 | ||||
| 3 | W10822069 | Rack, Oven |
|
Immediately | $ 138.59 | ||||
| 4 | W11794357 | Rack, Sliding Oven (Replaces: W11496903) |
|
$ 534.90 | |||||
| 5 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 7.30 | |||||
| 6 | W11662207 | Baffle, Convection (Replaces: W11212180) |
|
$ 173.23 | |||||
| 7 | W10794440 | Motor, Convection (Replaces: W10631506) |
|
Immediately | $ 332.30 | ||||
| 8 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 88.67 | ||||
| 9 | W10261523 | Plate, Fan |
|
$ 77.85 | |||||
| 10 | W10794042 | Nut, Acorn (left Hand Thread) (Replaces: W10631504) |
|
$ 13.14 | |||||
| 11 | W11098505 | Element, Convection Heat |
|
$ 159.46 | |||||
| 12 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 13 | W10739592 | Screw |
|
- | |||||
| 14 | W10850807 | Screw (Replaces: W10720084) |
|
$ 7.77 |
