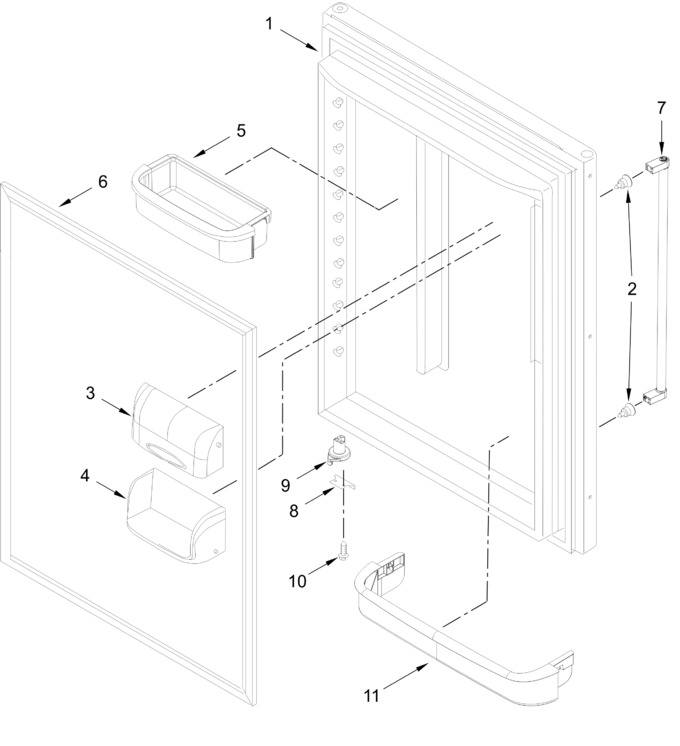

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107546SQ | Door, Refrigerator (stainless) (Replaces: 13107546S) |
|
$ 1,188.95 | |||||
| 2 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | W10443314 | Gasket, Door (grey) |
|
Immediately | $ 349.07 | ||||
| 7 | W11497229 | Handle, Door (stainless) (Replaces: W11339147) |
|
Immediately | $ 186.18 | ||||
| 8 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 9 | WP12028505AP | Closer, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 10 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 11 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 112.90 |
