New Model Search:

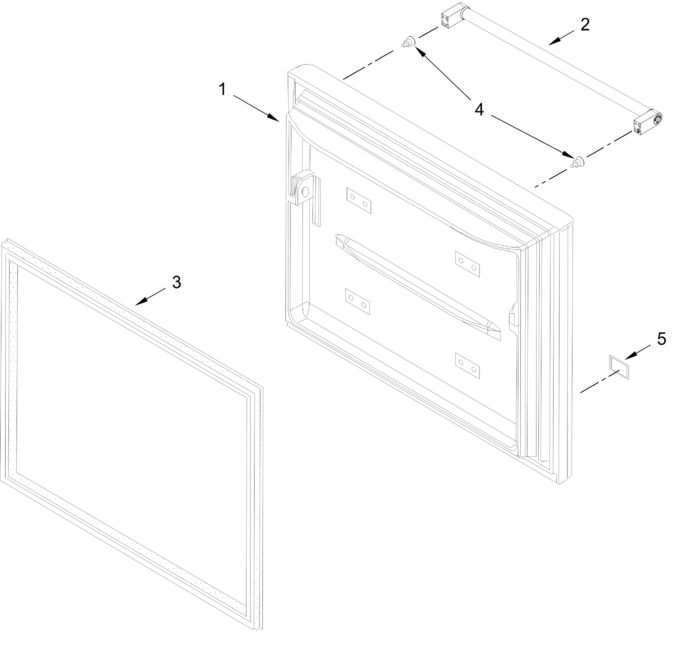

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109217SQ | Door, Freezer (stainless) (Replaces: 13109217S) |
|
Immediately | $ 1,095.95 | ||||
| 2 | W11497229 | Handle, Door (stainless) (Replaces: W11339147) |
|
Immediately | $ 186.18 | ||||
| 3 | W10443316 | Gasket, Door (grey) |
|
Immediately | $ 242.57 | ||||
| 4 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 5 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 76.20 |
