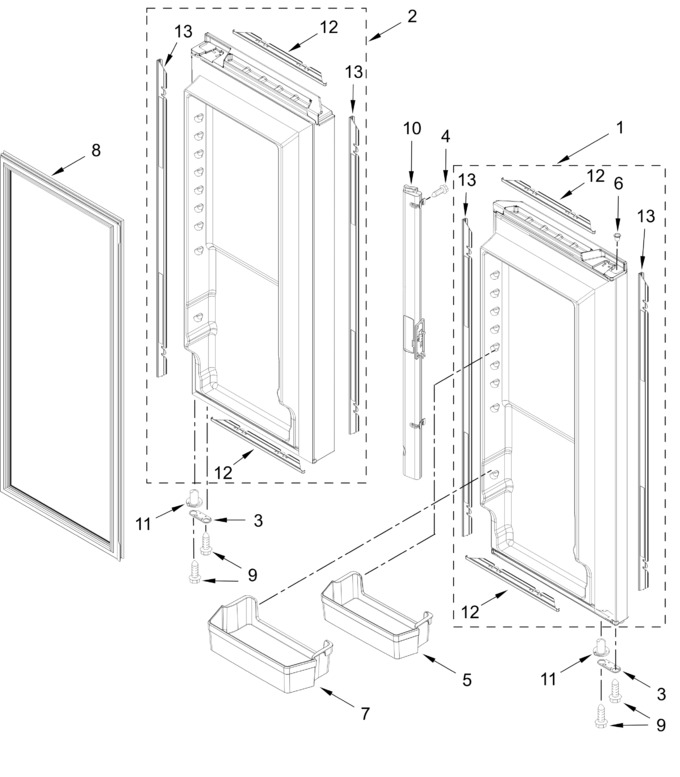

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11826495 | Door, Refrigerator (left Hand, Includes Trim) (Replaces: W11789173) |
|
- | |||||
| 2 | W11826494 | Door, Refrigerator (right Hand, Includes Trim) (Replaces: W11789172) |
|
- | |||||
| 3 | W10153126 | Stop, Door (black) |
|
$ 14.00 | |||||
| 4 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 5 | W11808087 | Bin, Door (medium) (Replaces: W11783260) |
|
Immediately | $ 50.84 | ||||
| 6 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 7 | W11808088 | Bin, Door (gallon) (Replaces: W11783263) |
|
$ 50.84 | |||||
| 8 | W10830046 | Gasket, Door (grey) |
|
$ 252.05 | |||||
| 9 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 10 | W11177241 | Mullion, Door (black) (Replaces: W11128562) |
|
Immediately | $ 168.83 | ||||
| 11 | WP67003639 | Closer, Door (black) (Replaces: 12028505B) |
|
Immediately | $ 81.29 | ||||
| 12 | W10130132 | Trim, Top And Bottom |
|
$ 116.40 | |||||
| 13 | WPW10130136 | Trim, Side (Replaces: W10130136) |
|
$ 159.40 |
