SELECT A DIAGRAM

Cabinet Parts


Freezer Door Parts


Freezer Liner And Icemaker Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

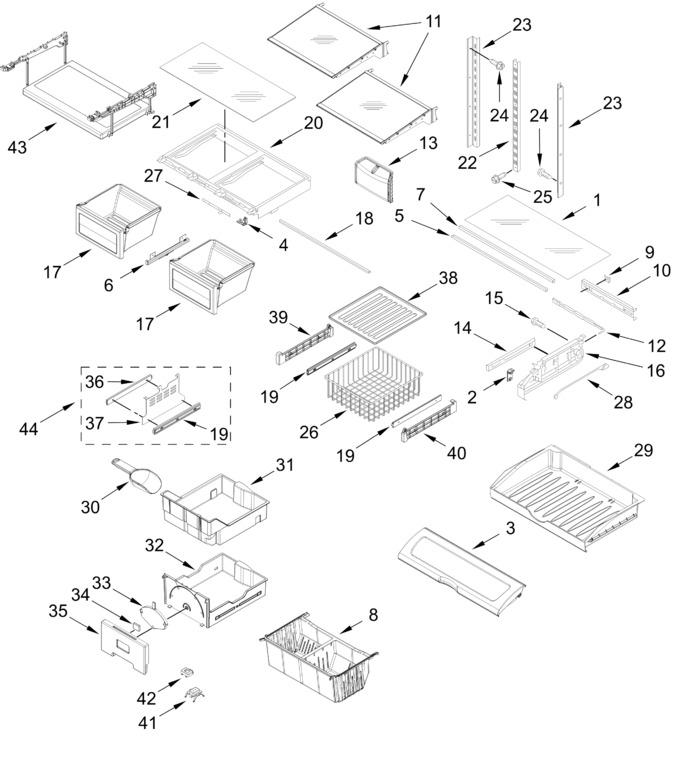

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67002332		Glass, Pantry   (Replaces: 12204815)			Immediately	$ 226.17
2	W11498983		Knob, Temperature Control   (Replaces: 12655204)				$ 27.58
3	W11810073		Lid Assembly, Pantry   (Replaces: W11784026)		Appelez-nous	-
4	W10119222		Knob, Humidity Control				$ 12.68
5	W11812285		Support, Glass   (Replaces: 12655902)				$ 48.00
6	2302952		Slide, Crisper (left Hand)			Immediately	$ 286.28
7	W11210956		Support, Glass   (Replaces: W10528935)				$ 32.58
8	W11125514		Bin, Lower   (Replaces: W11028646)				$ 124.05
9	67002329		Gasket, Pantry   (Replaces: 12656901)				$ 19.88
10	12656202		Housing, Control				$ 133.96
11	W11749293		Shelf Assembly, Stationary   (Replaces: W11611160)				$ 174.31
12	WP67003793		Slide, Temperature Control   (Replaces: 12655402)			Immediately	$ 70.64
13	W11462816		Produce Preserver   (Replaces: W10826105)			Immediately	$ 15.44
14	WPW10132653		Glide, Pantry (right Hand)   (Replaces: W10132653)				$ 297.25
15	WP98165		Screw   (Replaces: 12990504)				$ 7.71
16	WPW10122078		Track, Pantry (left Hand)   (Replaces: W10122078)			Immediately	$ 57.64
17	W11810065		Pan Assembly, Crisper   (Replaces: W11779075)		Appelez-nous	-
18	W10490807		Brace, Crisper Frame				$ 91.28
19	WPW10170836		Glide, Upper Basket   (Replaces: W10170836)				$ 282.76
20	W11810067		Frame, Crisper   (Replaces: W11787468)		Appelez-nous	-
21	W11810066		Glass, Crisper   (Replaces: W11787607)		Appelez-nous	-
22	W10273463		Ladder, Center				$ 26.65
23	WPW10569182		Ladder, Side   (Replaces: W10569182)				$ 27.59
24	W10215666		Screw				$ 8.58
25	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.57
26	W10120003		Basket, Upper Freezer				$ 222.62
27	W10119217		Slide, Humidity Control		Appelez-nous	-
28	67003794		Bar, Temperature Control   (Replaces: 12655303)				$ 12.44
29	WP12655703		Drawer, Pantry   (Replaces: 12655703)			Immediately	$ 154.53
30	W10182881		Scoop, Ice Pan				$ 20.12
31	W10120005		Pan, Ice				$ 190.46
32	WPW10120008		Carrier, Ice Pan   (Replaces: W10120008)				$ 130.29
33	W10184030		Lever, Ice Pan				$ 98.25
34	W11175810		Magnet, Latch   (Replaces: W10720771)				$ 91.20
35	WPW10174720		Front, Ice Pan   (Replaces: W10174720)				$ 67.60
36	WPW10170835		Glide, Ice Pan   (Replaces: W10170835)			Immediately	$ 264.29
37	WPW10170987		Support, Freezer Door   (Replaces: W10120014)			Immediately	$ 302.33
38	WPW10451455		Mat, Upper Basket   (Replaces: W10451455)			Immediately	$ 105.53
39	W10163084		Adapter, Upper Basket (left Hand)				$ 17.58
40	W10163087		Adapter, Upper Basket (right Hand)				$ 22.87
41	W10121002		Latch, Coupler				$ 171.14
42	W10121004		Housing, Coupler				$ 70.88
43	W11776631		Shelf Assembly, Nesting		Appelez-nous	-
44	WPW10170987		Assembly, Center Glide   (Replaces: W10170987)			Immediately	$ 302.33
	WPW10121977		Track, Pantry (right Hand)   (Replaces: W10121977)			Immediately	$ 56.58
	2302953		Slide, Crisper (right Hand)			Immediately	$ 286.57
	W10132652		Glide, Pantry (left Hand)				$ 230.56

    View Diagram in Separate Window       Print Part List
